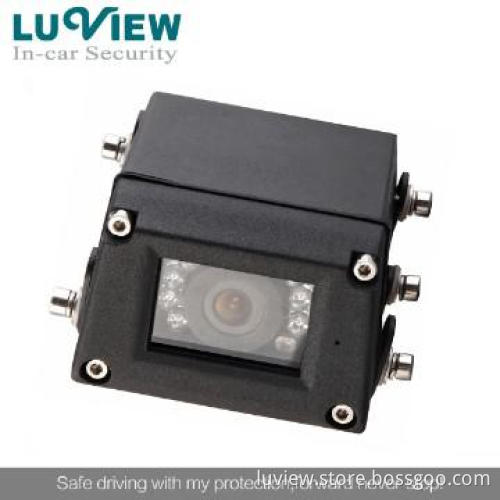

IP69K car backup camera for bus CCD Vehicle Camera car safety camera
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Color | Black |
|---|---|
| Waterproof Rate | IP69K |
| Resolution: | 420TVL |
| Image Device: | 1/4 SHARP CCD |
| IR Distance | 10 metre |
| Voltage | DC 12V |
Detail Description
- IP69K car backup camera for bus CCD Vehicle Camera car safety camera
- Product Description
-
Image Device: 1/4 SHARP CCD
Resolution: 420TV lines
TV System: PAL/ NTSC
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm
Scanning System: 2:1Interlace
Sync. System: Internal
Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on) 0 .1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto
Product’s idiomatical performance :
Lens: 2.5mm
Lens Angle: 120°
Infrared LED light: 7PCS
IR Distance: 15 m
Waterproof Rate:IP69K
Shell material: aluminum alloy
Bracket material: iron
Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
Current Consumption: Max. 180mA
Power Supply: DC12V
Operating Temperature: -20°C~70°C , RH95%MAX
Storage Temperature: -40°C~80°C,RH95%MAX
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | 7 days leading time after all information confirmed |
| FOB Port | Shenzhen |
| Loading Info | Express,Air,Shipping delivery all available |
| Packing Info | Neutral white box,OEM/ODM design packaging all accept. |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
