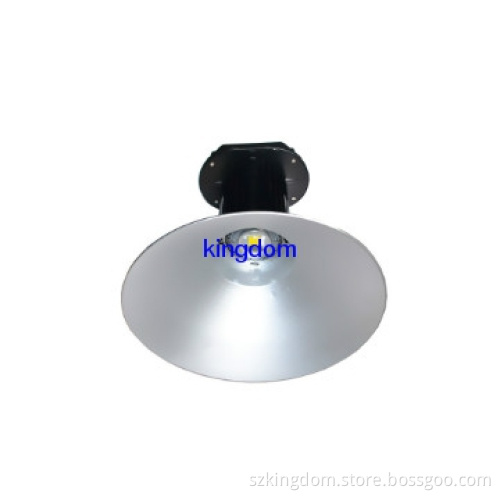

120W high bay light(90°)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

CCT	3000-6500K
Color	black/silver
Angle	45°/90°/120°
IP	IP65
Material	Aluminum, Aluminum Die Casting, Glass, PC
Light Source	LED Lamp
Voltage	90-260V

Order Code	KDGK-T120W-B(90°)
Electrical Characteristics	Wattage	120W
Input Voltage	AC85-265V
Freqency Range	50/60Hz
working Voltage	DC30-36V
Power Factor	＞0.9
Power Efficiency	＞87%
Toyal harmonic Distortion	≤9%
System Consumption	127W
Led Consumption	110W
Optical Characteristics	Luminous Efficiency	80-90 lm/w
Illuminance Uniformity	＞0.5
Lamp\' Luminous Efficiency	＞80%
CCT	3000-3500K/4000-4500K/5000-5500K/6000-6500K
Color Rendering Index	WW	Ra＞68
PW,CW	Ra＞75
Led Initial Flux	WW	8410LM
PW	8960LM
CW	9010LM
Average Illuminance	Height 6M	91Lux
Height 8M	51Lux
Height 10M	32Lux
Illuminance Area	Height 6M	Round, diameter15.6m
Height 8M	Round, diameter20.6m
Height 10M	Round, diameter25.2m
Light Distribution	Symmetrical/Round
Light Design	LED+Reflector secound light distribution
General Characteristics	Led Junction Temperature	≤80℃
Working Temperature	-40℃- +55℃
Storage Temperature	-25℃- +65℃(25℃)
IP Grade	IP65（outdoor use）
Working Life-span	50000H
Warranty	2 Years
Lamp Body	Anodized Aluminum
Optical Lens	Aluminum Alloy
The color of the lamp shell	Black/silver
Net Weight	6.5kg
Power Line	0.75m㎡ 3-core wire
Connect wire	Live wire(L)	Brown
Neutral wire(N)	Blue
Ground wire(G)	Yellow/Green
Packing	Pcs per ctn	Radiator(4pcs/carton), Reflector(10pcs/carton)
Dimensions	Radiator size:540540420 mm Reflector size:560560420mm
Gross Weight	7.5kg

Payment Terms	L/C, T/T, D/P, Western Union, Paypal, Others
Minimum Order	1PCS
Lead Time / Delivery Time	5 Day(s)
Sample Available	NO
Delivery Details	30% first payment and balance before delivery
FOB Port	Shekou,Shenzhen
Loading Info	depends on customer requirement
Packing Info	Radiator(4pcs/carton), Reflector(10pcs/carton)Radiator size:540540420 mmReflector size:560560420mm
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
