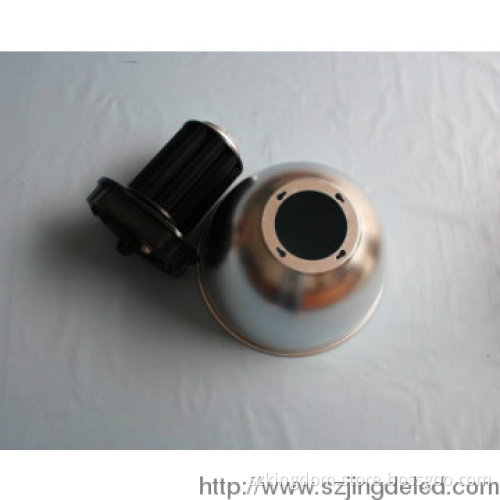

High Bay Light 50W New heat sink 45angle

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

CCT	3000-6500K
Color	black/silver
Angle	45°/90°/120°
IP	IP65
Material	Aluminum, Aluminum Die Casting, Glass, PC
Light Source	LED Lamp
Voltage	90-260V

Order Code	KDGK-N50W-01
Electrical Characteristics	Wattage	50W
Input Voltage	AC85-265V
Freqency Range	50/60Hz
working Voltage	DC30-36V
Power Factor	＞0.9
Power Efficiency	＞85%
Toyal harmonic Distortion	≤9%
System Consumption	58W
Led Consumption	47W
Optical Characteristics	Luminous Efficiency	80-90lm/w
Illuminance Uniformity	＞0.7
Lamp\' Luminous Efficiency	＞75%
CCT	3000-3500K/4000-4500K/5000-5500K/6000-6500K
Color Rendering Index	WW	Ra＞68
PW,CW	Ra＞75
Led Initial Flux	WW	3051LM
PW	3220LM
CW	3250LM
Average Illuminance	Height 4M	180Lux
Height 6M	80Lux
Height 8M	45Lux
Illuminance Area	Height 4M	Round, diameter5.3m
Height 6M	Round, diameter8m
Height 8M	Round, diameter10.7m
Light Distribution	Symmetrical/Round
Light Design	LED+Reflector secound light distribution
General Characteristics	Led Junction Temperature	≤80℃
Working Temperature	-40℃- +55℃
Storage Temperature	-25℃- +65℃(25℃)
IP Grade	IP65（outdoor use）
Working Life-span	50000H
Warranty	2 Years
Lamp Body	Anodized Aluminum
Optical Lens	Aluminum Alloy
The color of the lamp shell	Black/silver
Net Weight	4.7 kg
Power Line	0.75m㎡ 3-core wire
Connect wire	Live wire(L)	Brown
Neutral wire(N)	Blue
Ground wire(G)	Yellow/Green
Packing	Pcs per ctn	Radiator(4pcs/carton), reflector(10pcs/carton)
Dimensions	Radiator size:550550350 mm reflector size:480×480×430mm
Gross Weight	5.5kg

Payment Terms	T/T, D/P, Credit Card, Paypal, Others
Minimum Order	1PCS
Lead Time / Delivery Time	5 Day(s)
Sample Available	YES
Delivery Details	1.30% first payment and balance before delivery .2.5-7 workdays after received the deposit and everything confirmed
FOB Port	Guangzhou,Shenzhen
Loading Info	depends on customer requirement
Packing Info	Radiator(4pcs/carton), Reflector(10pcs/carton) ;Radiator size:540540400 mmReflector size:480×480×430 mm
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
