Basic Info
Basic Info
Product Description
Product Description
Basic Specification
| Color | Grey |
|---|---|
| CCT | 6000~6500K |
| Finishing Color | Silver |
| IP | IP65 |
| Voltage | 90-260V |
| Material | Aluminum Die Casting, Glass |
| Application | Advertising Lighting |
| Light Source | LED |
Detail Description

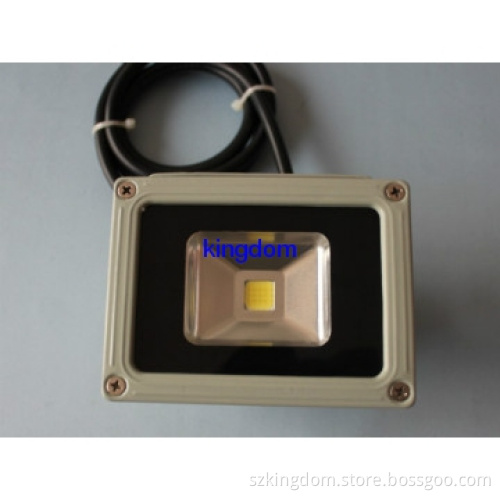

Specification:
Applications:
1.LED floodlight is widely used in square, building, aerodrome, dock, bus station, street, park and dooryard.
2.led floodlight contains Multi Voltage power adapter, and it works in different countries.
| Order Code | KDFL-PX10W | |
| Electrical Characteristics | Wattage | 10W |
| Input Voltage | AC85-265V | |
| Freqency Range | 50Hz~60Hz | |
| working Voltage | DC30-36V | |
| Power Factor | ＞0.98 | |
| Power Efficiency | ＞83% | |
| Toyal harmonic Distortion | ≤9% | |
| System Consumption | 12 W | |
| Led Consumption | 8 W | |
| Optical Characteristics | Luminous Efficiency | 75-85 lm/w |
| llluminance Uniformity | ＞0.4 | |
| Lamp\' Luminous Efficiency | ＞80% | |
| CCT | 3000-3500K / 4000-4500K / 5000-5500K / 6000-6500K | |
| Color Rendering Index | WW | Ra＞68 |
| PW,CW | Ra＞75 | |
| Led Initial Flux | WW | 480 LM |
| PW | 510 LM | |
| CW | 515 LM | |
| Average llluminance | Height 2M | 49.6 Lux |
| Height 4M | 12.4 Lux | |
| Height 5M | 8 Lux | |
| llluminance Area | Height 2M | Round, diameter 4m |
| Height 4M | Round, diameter 8m | |
| Height 5M | Round, diameter 10m | |
| Light Distribution | Symmetrical/Rectangular | |
| Light Design | LED+Reflector secound light distribution | |
| General Characteristics | Led Junction Temperature | ≤80℃ |
| Working Temperature | -40℃- +55℃ | |
| Storage Temperature | -25℃- +65℃(25℃) | |
| IP Grade | IP65（outdoor use） | |
| Working Life-span | 50000H | |
| Warranty | 2 Years | |
| Lamp Body | Anodized Aluminum | |
| Optical Lens | Aluminum Alloy | |
| The color of the lamp shell | Black/Grey | |
| Net Weight | 0.6 kg | |
| Power Line | 0.75m㎡ 3-core wire | |
| Connect wire | Live wire(L) | Brown |
| Neutral wire(N) | Blue | |
| Ground wire(G) | Yellow/Green | |
| Certificate | CE | |
| Packing | Pcs per ctn | 20pcs/carton |
| Dimensions | 550*320*270 mm | |
| Gross Weight | 0.8 kg |
Applications:
1.LED floodlight is widely used in square, building, aerodrome, dock, bus station, street, park and dooryard.
2.led floodlight contains Multi Voltage power adapter, and it works in different countries.
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal, Others |
|---|---|
| Minimum Order | 1 pcs |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | sample production delivery time 3-5 days.quantity production delivery time 7-10 days. |
| FOB Port | Shenzhen |
| Loading Info | depends on customer requirement. |
| Packing Info | 1. 20pcs/carton / 2. packing size:550*320*270 mm / 3. a 20ft ISO container can accommodate 11700pcs. / 4. a 40ft ISO container can accommodate 24300pcs. |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
