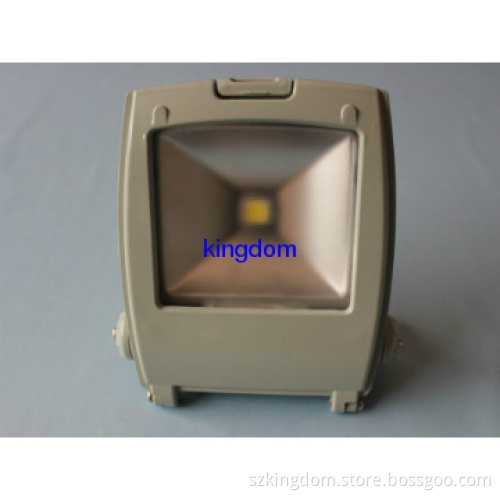

led floodlight 10W

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	grey
CCT	6000-6500K
Finishing Color	Silver
IP	IP65
Voltage	90-260V
Material	Aluminum Die Casting, Glass
Light Source	LED
Application	Garden

Detail Description

Key Specification:

Order Code	KDFL-PM10W
Electrical Characteristics	Wattage	10W
Input Voltage	AC85-265V
Freqency Range	50Hz~60Hz
working Voltage	DC30-36V
Power Factor	＞0.98
Power Efficiency	＞83%
Toyal harmonic Distortion	≤9%
System Consumption	11 W
Led Consumption	9 W
Optical Characteristics	Luminous Efficiency	75-85 lm/w
llluminance Uniformity	＞0.4
Lamp\' Luminous Efficiency	＞80%
CCT	3000-3500K / 4000-4500K / 5000-5500K / 6000-6500K
Color Rendering Index	WW	Ra＞68
PW,CW	Ra＞75
Led Initial Flux	WW	478 LM
PW	509 LM
CW	514 LM
Average llluminance	Height 2M	55 Lux
Height 4M	14 Lux
Height 5M	9 Lux
llluminance Area	Height 2M	Round, diameter 5.4m
Height 4M	Round, diameter 10.7m
Height 5M	Round, diameter 13.4m
Light Distribution	Symmetrical/Rectangular
Light Design	LED+Reflector secound light distribution
General Characteristics	Led Junction Temperature	≤80℃
Working Temperature	-40℃- +55℃
Storage Temperature	-25℃- +65℃(25℃)
IP Grade	IP65（outdoor use）
Working Life-span	50000H
Warranty	2 Years
Lamp Body	Anodized Aluminum
Optical Lens	Aluminum Alloy
The color of the lamp shell	Black/Grey
Net Weight	0.8 kg
Power Line	0.75m㎡ 3-core wire
Connect wire	Live wire(L)	Brown
Neutral wire(N)	Blue
Ground wire(G)	Yellow/Green
Certificate	CE
Packing	Pcs per ctn	4pcs/carton
Dimensions	200100250 mm
Gross Weight	1.5 kg

Applications:

1.LED floodlight is widely used in square, building, aerodrome, dock, bus station, street, park and dooryard.
2.led floodlight contains Multi Voltage power adapter, and it works in different countries.

Additional Information

Payment Terms	L/C, T/T, Western Union, Paypal, Others
Minimum Order	1pcs
Lead Time / Delivery Time	5 Day(s)
Sample Available	YES
Delivery Details	sample production delivery time 3-5 days.quantity production delivery time 7-10 days.
FOB Port	Shekou,Shenzhen
Loading Info	depends on customer requirement.
Packing Info	1. 4pcs/carton2. packing size:500420280 mm3. a 20ft ISO container can accommodate 1880pcs.4. a 40ft ISO container can accommodate 3960pcs.
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
