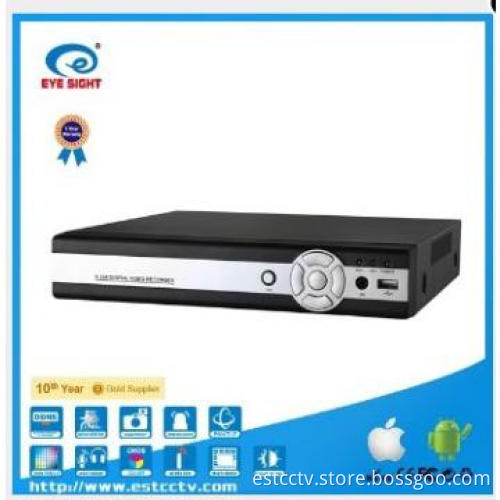

4CH Digital Video Recorder H.264 HD CCTV

                                     4CH Digital Video Recorder  H.264 HD CCTV
                                                         ES-DL954HV
♦ H.264 standard compression format with efficient processing and clear image
♦ Support CIF recording encoding
♦ Two high-speed USB2.0 interfaces, you can mix backup and mouse
♦ Support six operations at the same time, recording, playback, network transmission, backup, mobile monitoring, PTZ control etc
♦ Support IE and client, remote parameter settings / convenient remote network access function without need to apply for any domain names, plug and play
♦ Dedicated high-reliability file system for special monitoring
♦ Simplified Chinese, English, Thai, Russian, French, Spanish etc. over twenty languages
♦ A powerful mobile control and monitoring features to support Window Mobile,Symbian, Android, IPhone and Blackberry etc


Camera Feature
CMOS Camera	Dome Camera	Silver Waterproof Camera
Image Device	1/4 Color CMOS	1/4 Color CMOS
IR LED	24 pcs of ￠5 IR LED	36 pcs of ￠5 IR LED
Night vision	0lux, 20m IR distance	0lux, 20m IR distance


Specification;


System	Main Processor	FARADAY
System Resource	Pentaplex: Live recording, Playback, Backup, Remote access, PTZ control, Mobile monitoring
Control Mode	USB mouse, IR remote, Keyboard, Network
CIF/Half-D1/D1
CIF/Half-D1/D1
Video	Input	4×BNC,(1.0Vp-p,75Ω)
Standard	NTSC 120F/S;PAL100F/S
Output	1×BNC, (1.0Vp-p,75Ω),1×VGA
Audio	Input	4×RCA
Output	1×BNC
Display	Display Split	1/4
Resolution	VGA:1024*768, 800*600
Tour Display	Support
Recording	OSD	Camera title, Time, Video loss, Motion detection, Recording
Video/Audio	H.264 / ADPCM
Image Resolution	CIF(352*288/352*240)
Encoding Stream	Main stream: 30FPS/CH(NTSC),25FPS/CH(PAL)
D1:120FPS; CIF: 240FPS
D1:240FPS; CIF: 480FPS
D1:240FPS; CIF: 480FPS
CIF: 1-5FPS/CH(CIF)
CIF:60FPS
CIF:60FPS
CIF:60FPS
Recording Mode	Manual, schedule, Motion detection, Alarm
Recording Priority	Manual>Alarm>Motion detection
Video Detection&Alarm	Trigger Events	Recording, PTZ movement, Alarm, E-mail
Motion Detection	Zones: 396(22*18), Sensitivity:1-5(Level 5 is the highest)
Video Loss	Support
Alarm	None
Playback&Backup	Playback Channel	4 ch
Playback Speed	CIF: 30FPS/CH
D1: 120FPS; CIF:240FPS
Search Mode	Time, Alarm, Motion detection
Playback Function	Play, Pause, Stop, Fast forward, Slow forward, Full screen etc. Recording files can be viewed by dragging the progress bar back and forth
Backup Mode	U-disk/ USB-HDD/USB- CD/DVD-RW/Network
Network	Physical Interface	RJ-45port(10/100M)
Network Function	TCP/IP, UDP, DHCP, DNS, IP filter, PPPOE, E-mail, Alarm server, UPNP, DDNS, DNS Binding
Remote Operation	Monitor, PTZ control, Playback, System setting, files download, Log information
Mobile Phone	Support Window Mobile, Symbian, Android, IPhone, Blackberry etc.
Hard Disk	1 SATA HDD Up to 2TB
Space Occupation	Audio: 14.4MB/H, Video: 56-900MB/H
HDD Management	Hard disk hibernation technology, HDD faulty alarm, file restoration
Auxiliary Interface	USB	Two USB2.0 interface, for connecting mouse, U-disk, USB hard disk
RS485	PTZ control
Environmental	Power Supply	12V/3A
Working Environment	-10℃~+50℃ / 10~80%RH / 86~106kpa
