4/8 Channel H.264 DVR CCTV Camera with iPhone Remote View

                               4/8 Channel H.264 DVR CCTV Camera with iPhone Remote View

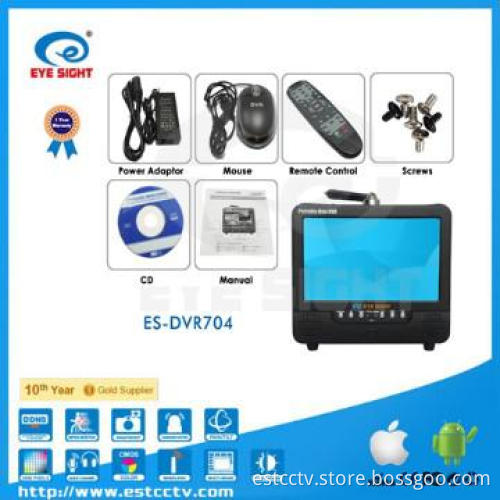

                                                              ES-DVR704
♦ H.264 compression
♦ Built-in 7 inch LCD screen
♦ Built-in amplifier and speaker
♦ Support bidirectional audio function
♦ 4ch real-time video view, recording, playback and backup
♦ Mobile phone view function(Windows Mobile, Symbian, iPhone, Android, Black berry)
♦ Network function
♦ Multi operation method (Button, mouse, remote controller)
♦ Multi backup method (U disk, Hard disk, network)
♦ Easy hard disk installation


Statem	Specification	7\" COMBO DVR
Operation System	Lilux
Interface	Imaging
Image	Display Size	7 inch
Resource	Real-time recording, playback, internet browsing
Display Mode	Single/quad
TV System	PAL/NTSC
Video quality	6 options
Record Rate	PAL: 25fps, NTSC: 30fps
Motion Detection	Per channel 22*18 detect area
Recording Mode	Manually, alarm, motion detection, timing
Local playback	4CH simultaneously
Video Query	Search by time, date, event, channel
Video Record	Hard disk, remote record, USB
Backup Mode	Internet, USB storage
Wireless Parameter(ES-DVR C740FM)	Frequency	5.8G
Transmission Mode	Simultaneously audio and video
Open Distance	50M
Indoor Distance	30M
Video & Audio	Video Input	4ch
Video Compression	H.264
Video output	1ch BNC,1ch VGA
Audio Input	4 CH
Audio compression	G.711
Talkback	Built-in sound pick up
Audio Output	1ch RCA+built-inspeaker
Alarm	Alarm Input	4ch
Alarm Output	1ch
Interface	PTZ Control	RS-485
Network interface	Self-adapt RJ45 10M/100M
USB Interface	USB2.0*2
HDD Interface	STAT*1(2TB)
Power Adaptor	DC12V/3A
Consumption	≤15 W
Working temperature	-10℃～+55℃
Working Humidity	10%～90%
Atmosphoric Prossure	86Kpa～106Kpa
Packing	Size: 28*26*19.5cm, Weight: 2.9KGS, Quantity: 8pcs/CTN, G.W: 24.5KG/CTN, Meas: 58*42*53.5cm
