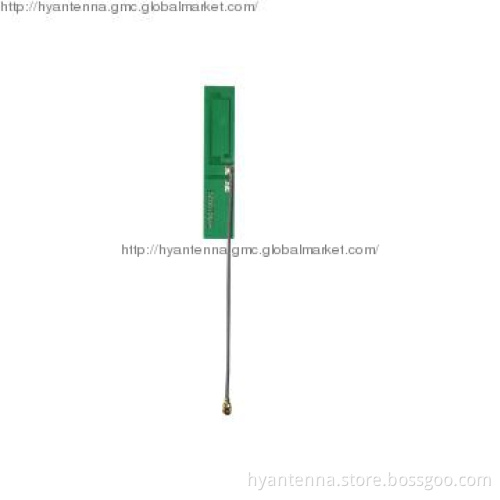

IPEX Connector 900/1800M 2dBi GSM Built-in Antenna
  • IPEX Connector 900/1800M 2dBi GSM Built-in Antenna
  • IPEX Connector 900/1800M 2dBi GSM Built-in Antenna
  • IPEX Connector 900/1800M 2dBi GSM Built-in Antenna
  • IPEX Connector 900/1800M 2dBi GSM Built-in Antenna
IPEX Connector 900/1800M 2dBi GSM Built-in Antenna
IPEX Connector 900/1800M 2dBi GSM Built-in Antenna
IPEX Connector 900/1800M 2dBi GSM Built-in Antenna
IPEX Connector 900/1800M 2dBi GSM Built-in Antenna

IPEX Connector 900/1800M 2dBi GSM Built-in Antenna

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Material Other
Frequency Other
Gain-dBi Other

Detail Description

(factory)IPEX Connector 900/1800M 2dBi GSM Built-in Antenna

Product Name

GSM Built-in Antenna

Model

HYA-0819ITF1-60

Descriptions

It\'s applied to GSM system.

Electrical Specification

Frequency Range-MHz

850/900/1800/1900

Gain-dBi

2.0

VSWR

≤2.5

Nominal Impedance-Ω

50

Polarization

Vertical

Max. Power-W

20

Connector

IPEX

Mechanical Specification

Cable Length-mm

60

Antenna Dimension-mm

50×10×0.6

Installation Way

Adhesive

Temperature-℃

-40～＋60

Humidity-﹪

5～95

Additional Information

Payment Terms T/T, Others
Minimum Order 100
Lead Time / Delivery Time 7 Day(s)
Sample Available YES
FOB Port Shenzhen
Target Market(s) Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
