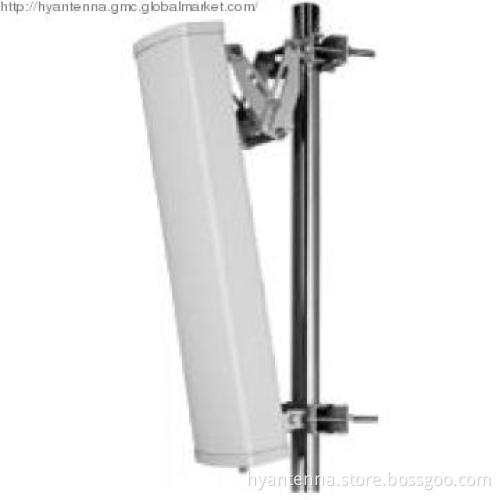

5.8G 18dBi Panel Antenna With N Female Connector

Model

HYA5800P60A-18

Electrical specifications

Frequency Range -MHz

5725-5850

VSWR

≤1.5

Gain-dBi

18

Vertical Beam  width-°

8

Horizontal Beam width -°

60

Polarization

Vertical

Impedance-Ω

50

Max. Power-W

100

Front-to-Back Ratio -dBi

≥25

Mechanical specifications

Connector

N-K

Dimension-mm

43×16×7

Net weight-kg

2

Installation -mm

Ф40-50

Operation Temperature-℃

-40～＋70

Description: It is high gain and low VSWR with sector covered. It\'s applied to 5.8G WLAN system and 5.8G ISM/ UNII frequency, supporting 802.11a.g., with hotspot covered.
