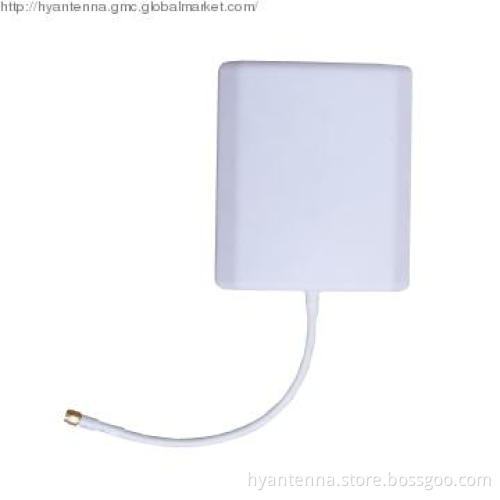

5.1?5.8GHz 11dbi Wall Mounting Antenna With N Female Connector

Product Name

5.1～5.8GHz 11dbi Wall Mounting Antenna

Model

HYA-5158WA11V90

Descriptions

5.1GHz～5.8GHz wall mount antenna is high gain, low VSWR, broad bandwidth and compact size. It is applied to point-to-point or point-to-multipoint application, 5.3/5.5/5.8GHz WLAN system and 5.8GHz UNII/ISM system.

Electrical Specification

Frequency Range-MHz

5150~5850

Bandwidth-MHz

700

Gain-dBi

11

VSWR

≤1.5

Horizontal Beam width -°

90

Vertical Beam width-°

20

F/B Ratio-dB

≥25

Nominal Impedance-Ω

50

Polarization

Vertical

Max. Power-W

50

Connector

N Female or customized

Mechanical Specification

Antenna Dimension-mm

140×120×38

Weight-kg

0.55

Mounting

Wall mounting

Temperature-℃

-40～＋60

Humidity-﹪

5～95
