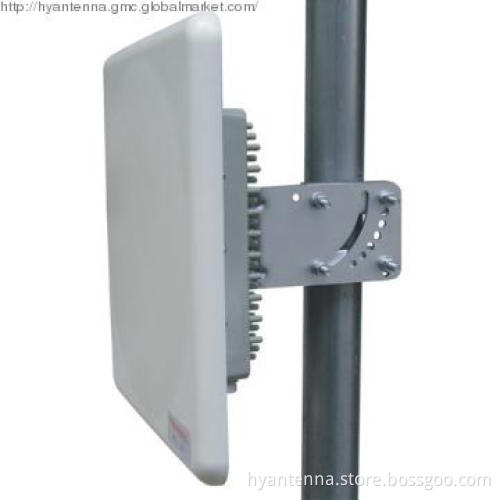

5.8G Base Station Antenna Flat Panel Antenna 23dBi Gain

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Name	5.1~5.8G Flat Panel Antenna (Factory)
Model	HYA-5158PF23R
Applying	For 5.1/5.5/5.8G WLAN System; 5.8G ISM/UNII frequency;Point to point system

Electrical Specification
Frequency-MHz	5150~5850
Bnadwidth－MHz	700
Gain-dBi	23
VSWR	≤1.5
Horizontal Beamwidth-°	11
Vertical Beamwidth-°	11
F/B ratio-dB	≥28
Impedance-Ω	50
Polarization	Vertical or Horizontal
Max power-W	50
Connector	N-K

Mechanical Specification
Antenna Size-m	305x305x25
Weight-kg	2.8
Pole-mm	Ф40～50
Temperature（℃）	-40～+60
Humidity	5～95﹪

Payment Terms	T/T, Western Union, Others
Minimum Order	100
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
