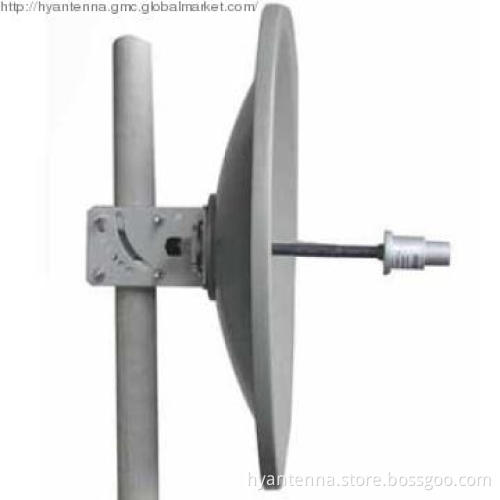

5.8G 32dBi Parabolic Antenna Point to Point Antenna (Factory)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Name	5.8G Parabolic Antenna
Model	HYA-5800P32
Application	For 5.8G WLAN WIFI System; 5.8G ISM/UNII frequency, Point to point system

Electrical Specification
Frequency-MHz	5725~5850
Bandwidth－MHz	125
Gain-dBi	32
VSWR	≤1.5
Horizontal Beamwidth-°	4
Vertical Beamwidth-°	4
F/B ratio-dB	≥38
Impedance-Ω	50
Polarization	vertical or horizontal
Max power-W	100
Connector	N-K

Mechanical Specification
Antenna Size-m	φ0.9
Weight-kg	10
Pole Diameter-mm	Ф50～70
Temperature（℃）	-40～+60
Humidity	5～95﹪

Payment Terms	T/T, Western Union, Others
Minimum Order	500
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
