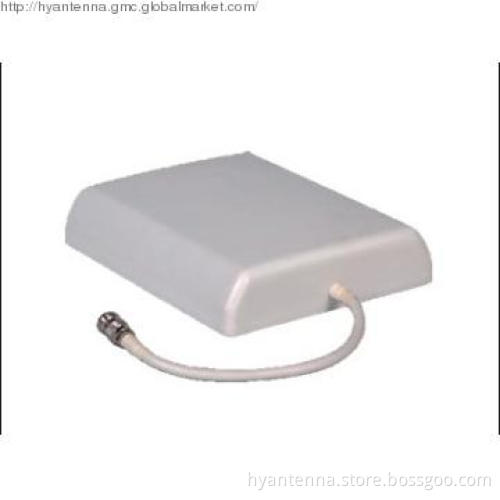

18dBi 5.1-5.8G Wall Mount Hanging Antenna

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Name	5.1-5.8G Wall Mount Hanging Antenna
Model	HYA-51580WA18
Application	For 5.3/5.5/5.8G WLAN System; 5.8G UNII/ISM system

Electrical Specification
Frequency-MHz	5150~5850
Bandwidth－MHz	700
Gain-dBi	18
VSWR	≤1.5
Horizontal Beamwidth-°	20
Vertical Beamwidth-°	20
F/B Ratio-dB	≥25
Impedance-Ω	50
Polarization	vertical
Max Power-W	50
Connector	N-K

Mechanical Specification
Antenna Size-mm	210×180×45
Weight-kg	0.6
Installation-mm	Hanging
Temperature（℃）	-40～＋60
Humidity	5～95﹪

Payment Terms	T/T, Western Union, Paypal, Others
Minimum Order	100
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
