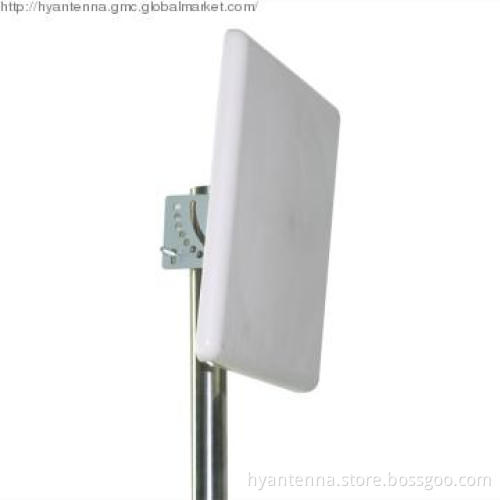

5.1?5.8GHz 20dBi Panel Antenna With N Female Connector (factory)

Product Name

5.1～5.8GHz 20dbi panel antenna

Model

HYA-5158PD20

Descriptions

5.1～5.8GHz panel antenna is low VSWR, high gain and compact size which is easy to install. It is applied to point-to-point or point-to-multipoint application, 5.1/5.5/5.8GHz WLAN system and 5.8GHz UNII/ISM system with hotspot covered.

Electrical Specification

Frequency Range-MHz

5150~5158

Bandwidth-MHz

700

Gain-dBi

20

VSWR

≤1.5

Horizontal Beam width -°

15

Vertical Beam width-°

15

F/B Ratio-dB

≥25

Nominal Impedance-Ω

50

Polarization

Vertical or horizontal

Max. Power-W

50

Connector

N Female or customized

Mechanical Specification

Antenna Dimension-mm

261×261×35

Weight-kg

1.1

Pole dimension-mm

φ40～50

Temperature-℃

-40～＋60

Humidity-﹪

5～95
