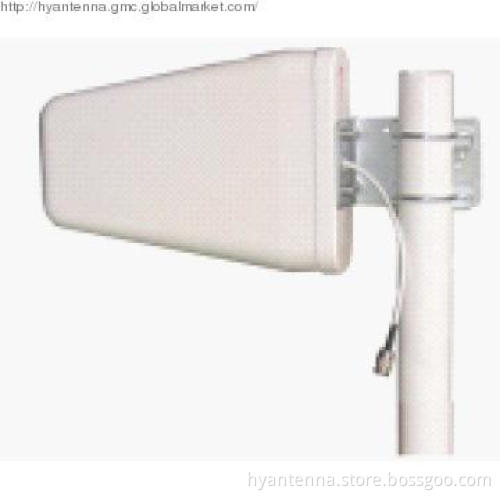

7DB LPDA Antenna With N Female Connector

Model

HYA-QL802507

Electrical specifications

Frequency Range -MHz

806-960/1710-2500

VSWR

≤1.5

Gain-dBi

7/9

Vertical Beam  width-°

50/40

Horizontal Beam width -°

65/50

Polarization

Vertical or Horizontal

Impedance-Ω

50

Max. Power-W

50

Lightning protection

DC Ground

Mechanical specifications

Connector

N-K or other

Dimension-mm

295×210×64

Net weight-g

723

Installation -mm

Pole Ф40-Ф50

Operation Temperature-℃

-30~+85

Description: It\'s applied to base station, indoor coverage system and GSM/CDMA/PCS/3G/WLAN system.
