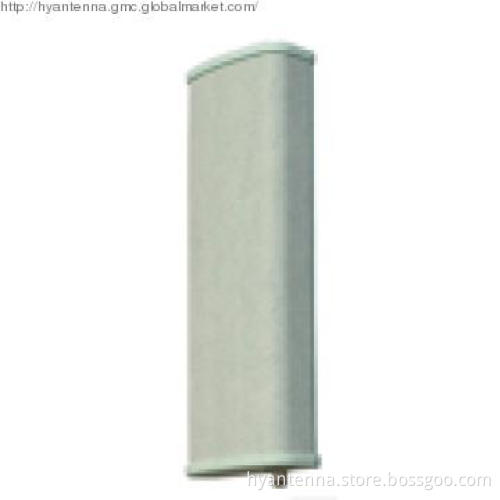

Hot Sale 2.4G 14dBi Flat Panel Antenna

Name	2.4G Panel Antenna
Model	HYA-2400V90A-14
Application	For 2.4G WLAN WIFI System, 2.4G GISM Frequency,support IEEE802.11b/g

Electrical Specification
Frequency-MHz	2400~2483
Bandwidth－MHz	83
Gain-dBi	14
VSWR	≤1.5
Horizontal Beamwidth-°	90
Vertical Beamwidth-°	15
F/B Ratio-dB	≥25
Impedance-Ω	50
Polarization	vertical
Max Power-W	100
Connector	N-K

Mechanical Specification
Antenna Size-mm	430x160x70
Weight-kg	2.0
Pole Diameter-mm	Φ40~50
Temperature（℃）	-40～＋60
Humidity	5～95﹪

Payment Terms	T/T, Others
Minimum Order	100
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
