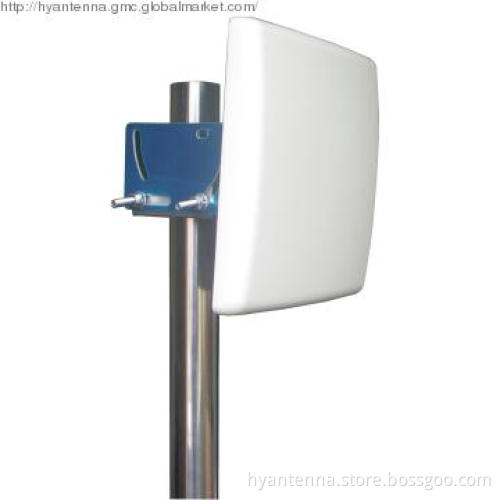

2.4GHz 12dbi Panel Antenna With N Female Connector

Product Name

2.4GHz 12dbi Panel Antenna

Model

HYA-D2400PG12

Descriptions

2.4GHz panel antenna is high gain, low VSWR and compact size. It is applied to 2.4GHz WLAN WIFI system and wireless bridge with hot spot covered.

Electrical Specification

Frequency Range-MHz

2400～2483

Bandwidth-MHz

83

Gain-dBi

12

VSWR

≤1.5

Horizontal Beam width -°

54

Vertical Beam width-°

32

F/B Ratio-dB

≥25

Nominal Impedance-Ω

50

Polarization

Vertical

Max. Power-W

50

Connector

N Female

Mechanical Specification

Antenna Dimension-mm

190×190×30

Weight-kg

0.55

Pole dimension-mm

φ40～50

Temperature -℃

-40～＋60

Humidity-%

5～95
