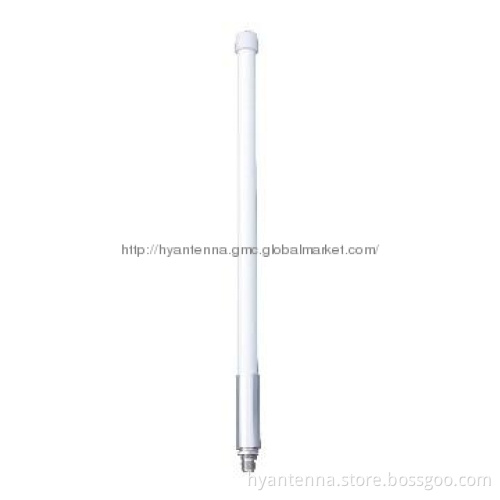

2.4GHz Fiberglass Omni-directional Antenna

Model

HYA-2400FA12

HYA-2400FA10

HYA-2400FA8

HYA-2400FA6

Electrical specifications

Frequency range-MHz

2400~2483

2400~2483

2400~2483

2400~2483

Gain-dBi

12

10

8

6

Polarization

Vertical

Vertical

Vertical

Vertical

VSWR

≤1.5

≤1.5

≤1.5

≤1.5

Horizontal Beam width -°

7

10

16

25

Vertical Beam width -°

360

360

360

360

Impedance -Ω

50

50

50

50

Power Capacity-W

100

100

100

100

Mechanical specifications

Connector

N Female

N Female

N Female

N Female

Dimensions-mm

φ21×1200

φ21×1000

φ21×550

φ21×400

Weight-kg

1.2

1.0

0.5

0.4

Operating Temperature -℃

-40～＋60

-40～＋60

-40～＋60

-40～＋60

Description：For 2.4GHz frequency WLAN /Wi-Fi system /ISM frequency，support IEEE802.11b/g；Wide range of applications, to wireless digital image transmission, public hotspot, point-to-point and point-to-multipoint wireless bridge.
