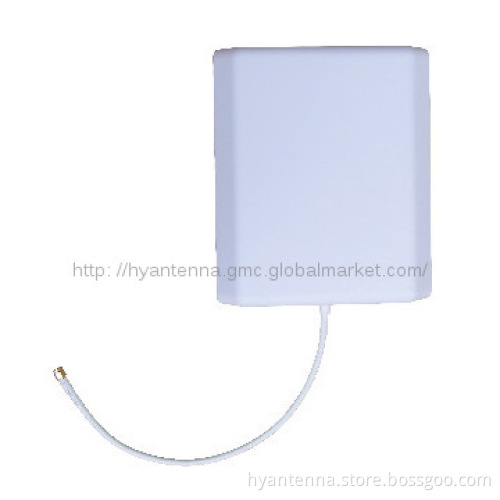

2.4G /5.8G dual band Panel Antenna 15dBi Gain

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Hot Sale 2.4G /5.8G Flat Panel Antenna 15dBi Gain

Name	2.4G/5.8G Panel Antenna
Model	HYA-2458PB
Application	For 2.4/5.1/5.5/5.8G WLAN WIFI System, 5.8G UNII/ISM System

Electrical Specification
Frequency-MHz	2400~2500 5150~5850
Bandwidth－MHz	100 700
Gain-dBi	12 15
VSWR	≤1.5 ≤1.5
Horizontal Beamwidth-°	43 20
Vertical Beamwidth-°	46 22
F/B Ratio-dB	≥20 ≥20
Impedance-Ω	50
Polarization	vertical
Max Power-W	50
Connector	N-K

Mechanical Specification
Antenna Size-mm	220×190×50
Weight-kg	1.2

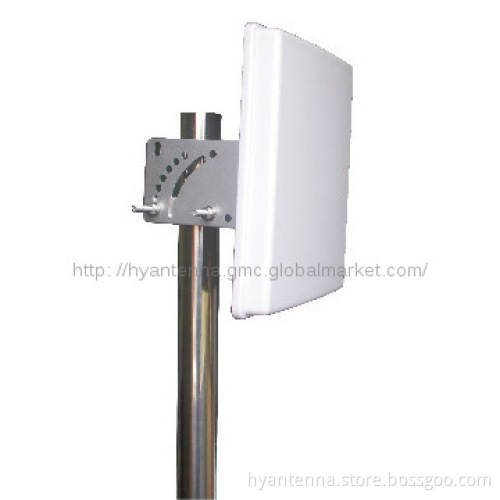

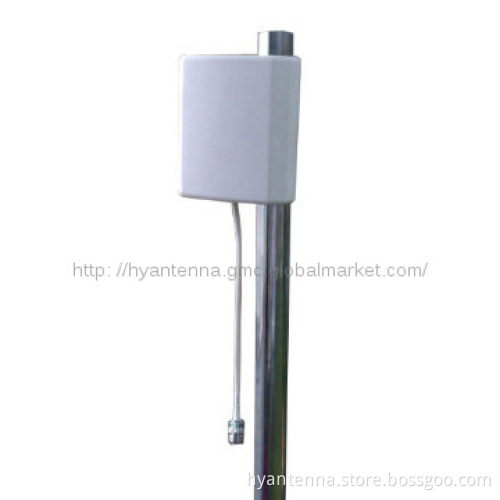

Installation-mm	Pole
Temperature（℃）	-40～＋60
Humidity	5～95﹪

Payment Terms	T/T, Western Union, Others
Minimum Order	100
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
Delivery Details	after receive your payment within 7days
FOB Port	Shenzhen
Loading Info	by TNT, FedEx, DHL and so on
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
