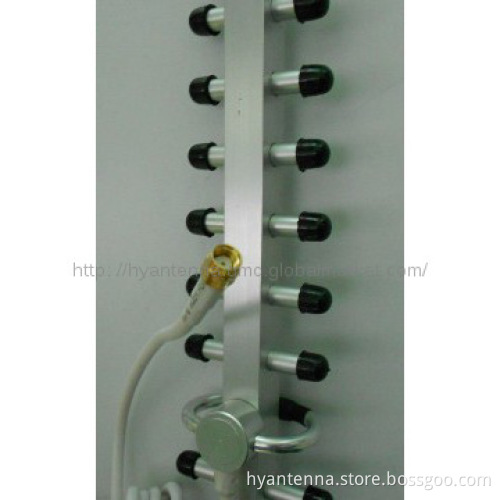

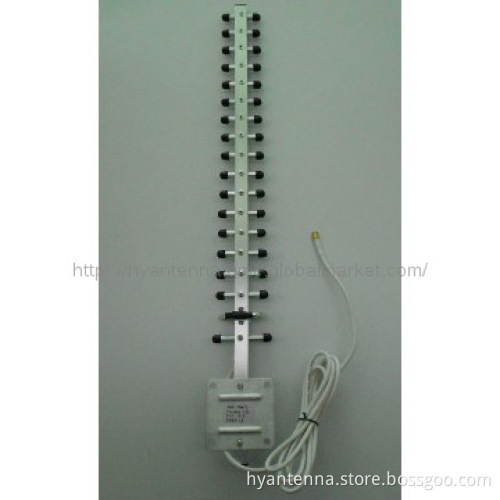

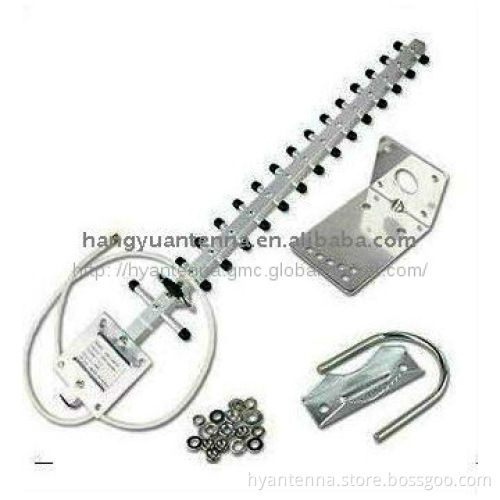

2.4G Yagi Antenna 18DB With SMA Male Connector

Model

HYA-Y240018

Electrical specifications

Frequency Range -MHz

2400-2483

VSWR

≤2.0

Gain-dBi

18

Vertical Beam width-°

24

Horizontal Beam width -°

26

Front-to-Back Ratio -dBi

≥32

Polarization

Vertical

Impedance-Ω

50

Max. Power-W

50

Lightning protection

DC Ground

Mechanical specifications

Connector

RPSMA-J or other

Dimension-mm

580×70

Net Weight-g

 308

Pole Installation -mm

 Φ40~50

Description： It\'s applied to 2.4G WLAN system and 2.4G ISM frequency with wireless bridge.
