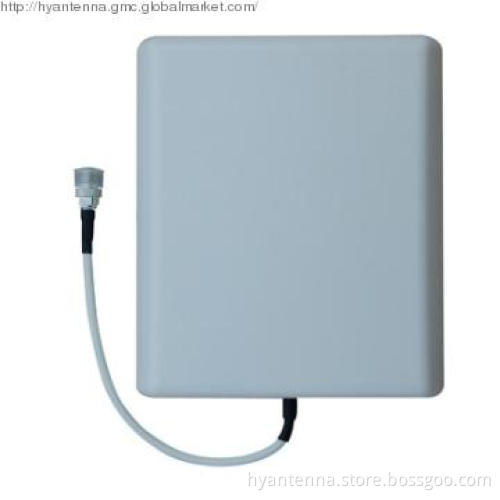

11dBi Indoor Wall Mount Antenna

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

11dBi Indoor Wall Mount Antenna

Product Name	Wall Mount Antenna
Model	HYA-0825WA
Descriptions	It\'s applied to base station, indoor coverage system and GSM/CDMA/PCS/3G/WLAN system.
Electrical Specification
Frequency Range-MHz	806-960/1710-2500
Bandwidth-MHz	154/790
Gain-dBi	10/11
Vertical Beam width-°	55/45
Horizontal Beam width -°	70/60
VSWR	≤1.5
Nominal Impedance-Ω	50
Polarization	Vertical
Max. Power-W	50
Connector	N-K
Mechanical Specification
Cable Length-m	0.3
Antenna Dimension-mm	210×180×47
Weight-g	415
Temperature-℃	-40～＋60
Humidity-﹪	5～95
Installation	Wall Mounting

Payment Terms	T/T, Others
Minimum Order	100
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
