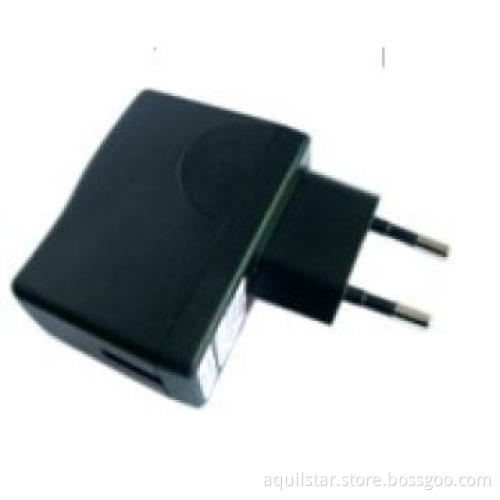

Battery Adapter/Power Adapters/Switching Power Adapter
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| black | white |
|---|---|
| Life | 30000hours |
| Voltage | 12V |
| Power | 1000mA |
Detail Description
Compact structural design Double insulated circuit, Over current, over voltage, short circuit protection, Low standby power consumption, high efficiency, Energy star Level V compliant, LED indication.
Application: Wireless communications, Networking devices, Personal digital products.
Input Specifications: Input voltage 90^264VAC
Input frequency 47^63Hz
Input current 300mA(RMS)@90 VAC
Inrush current <30A max. @240 VAC
No load power consumption 0.5 Watt
Output Specifications: Power 7.5Watts
Efficiency: 70%
Min Ripple and noise: 100mv
Hold-up time: 50ms @ full load, 120V AC
Hi-Pot: 3000 VAC/1min/5mA
General Specifications: Leakage
Current: 0.25mA max. @240 VAC
Overcurrent protection: Continuous, auto restar
Overvoltage protection: 120%
Short circuit protection: Continuous, auto restart
Safety standard: CE LVD EN60950-1
UL: 60950 CCC: GB4943: 2001
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1,000PCS |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | FOB |
| FOB Port | Shenzhen |
| Loading Info | FOB shenzhe port by sea |
| Packing Info | PE bags , blister package , white box or as our customer requirments |
| Target Market(s) | Hong Kong/ Macao/ Taiwan, Latin America, Mainland China, North America, Northern Europe, Oceania, Western & Southern Europe |
