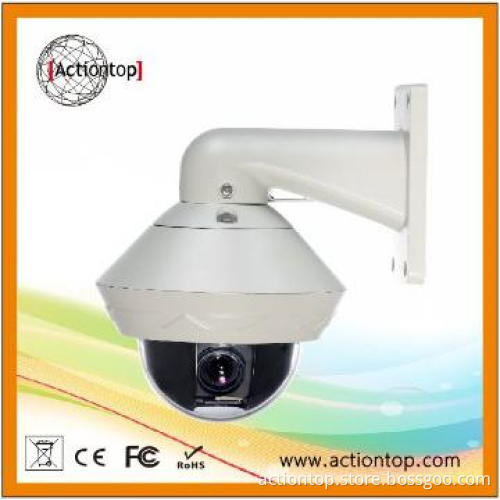

mini speed dome with samsung new 12x ptz camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

IR distance	30m
Preset points	128
Power	24VAC 1500mA
Communication	RS485
Camera module	Sony, Hitachi,Samsung
Style	Dome Camera
Special Features	Other, Vandal-proof, Waterproof, Weatherproof
Type	Other
Image Sensor	CCD
Technology	Infrared, Tilt, Zoom

mini speed dome with samsung new 12x ptz camera

Luna4.2

Features:

3.5 inch mini unique apperance: small and delicate, smooth and reliable operation;
360° continuous rotation, tilt: 0° ~90° (180° auto flip),pan manual opeation speed: 0.1~60°/S,tilt manual operation speed:0.1~60°/S,preset running speed 80°/S,user defined 64 presets;
6 programmable vector scan;
Support Hitachi, Samsung and Sony 10X optical All-in-one machine;
Support protocol:Pelco-D/P;
Intelligent power off memory function,
All-weather design, IP66 Grade(outdoor type);
RS-485 long-range control

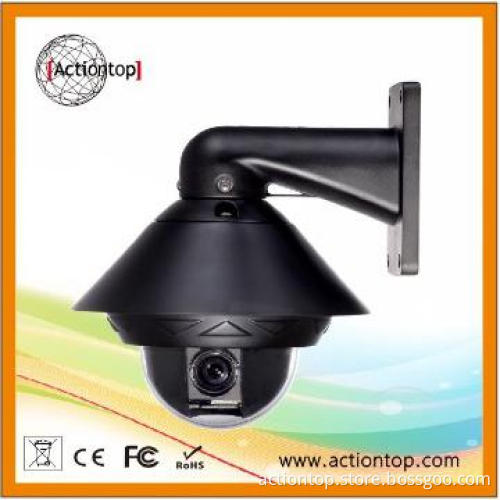

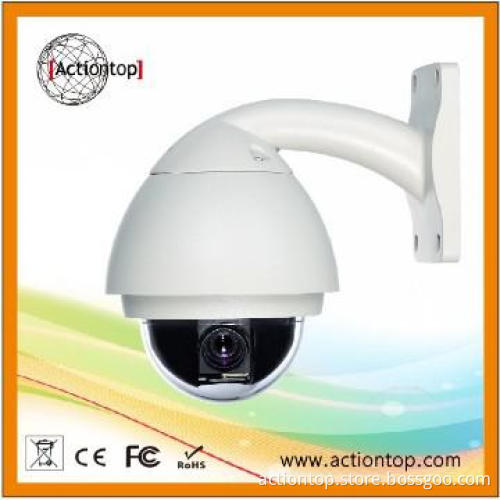

Optional Shapes:

Technical Specifications:

Dome type	Indoor dome	Outdoor dome
Address	0~255
Pan range	360° infinite continuous rotation
Tilt range	0°~90° Flip; 180° auto flip with 10° forward tracing
Manual speed Pan	0.1~60°/Sec
Manual speed Tilt	0.1~60°/Sec
Preset speed	80°/Sec
Preset accuracy	±0.20°
Preset points	64 Points
Tours	6 Programable(Dwell time speed preset point)
Integrate multi-protocol	Pelco_D/P
Auto Scan	Yes ( Programable speed )
Intelligent power-off memory current setting and state	Yes
Home position	Yes
Supporting camera	10×zoom (Sony, Hitachi,Samsung)
Zoom	Optical X10
Continue Manual	Endless
Ingress Protection IP66	No
Operating Temperature	0°C~50°C	–30°C~60°C
Humidity	0%~90% (Non condensing)
IP66 for outdoor use	No	Yes
Power	24VAC 1500mA
Consumption	6W	8W
communication	RS485 (+/-)
Connection	BNC

Camera module options:

SamSung Model
Samsung 10X	10X,IC-CUT	1/4 inch, Interline Transfer CCD10X, f=3.84 to 38.0mm(F 1.8) Color:500 TVLine(Min.)
Samsung 12X	12X,D/N	1/4 inch, Interline Transfer CCD 12X, f=3.94 to 46.05mm(F 1.67 to 1.88) Color:560 TVLine(Min.) B/W:680 TVLine(Min.)
Sony Model
Sony10x	10x , color	1/4 type Exview HAD CCD,10X, f = 4.2 to 42 mm 530 TV lines
China Model
AT-100H	10X zoom	1/3-inch Super HAD CCD,10X, f =4.0 to 40mm(F1.7(w)-.7(t), 480 TV lines

Applicable Places:

Size Chart:
