SD IP Camera High Speed Dome Camera
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Preset points | 128 |
|---|---|
| Video coding | H.264 Main Profile,MJPEG/JPEG Baseline |
| relevant certification | CE,RoHs,FCC,IP66 |
| Audio compression | G.711,G.726,support 32K stereo |
| Power | 24VAC 2A 60Hz/50Hz |
| Style | Dome Camera |
| Special Features | Other, Vandal-proof, Waterproof |
| Type | IP Camera |
| Technology | Other, Pan, Tilt, Zoom |
| Image Sensor | CCD |
Detail Description

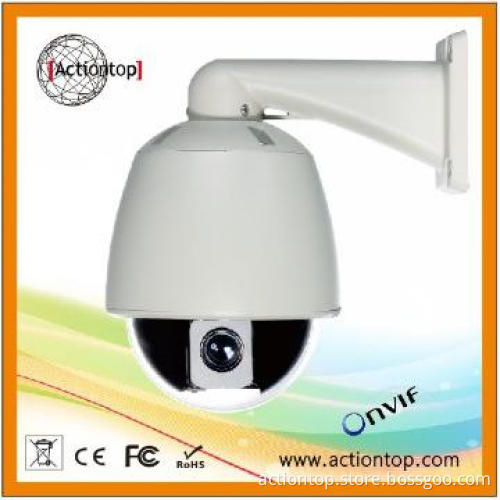

SD IP Camera High Speed Dome Camera
Puma11.101
Performance Specification：
- Optimized compression algorithm : H.264 Main Profile，high compression ratio, high definition, support dual stream.
- Image quality, code rate and frame rate are settable;
- Support local SD Card storage；
- Support video loss, motion detection( sensitivity and detection area can be setted) and sensor alarm function.；
- Support ONVIF protocol，bothway voice talkback;
- Support a variety of network protocol such as TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP and so on；
- Support setup and call of preset, cruise and track (cruise and track need be matched);
- Built-in Web Server, can realize remote monitor, control, set and other operations through IE browser;；
- Support mobile monitor；
- Support voice talkback input;
- Multilevel user permission management；
- Support remote updating maintenance；
- Unusual self-recovery and network interruption automatic reconnect function;
- Pass IP66,CE,FCC,RoHs and other related validation;
| Type | Indoor | Outdoor |
| Dome Camera | ||
| Address | 0~255 | |
| Pan range | 360°° Continue Rotation | |
| Tilt range | 0°~90° ; Auto flip 180°with forward tracing 10° | |
| Manual speed Pan | 0.1~300°/S | |
| Manual speed Tilt | 0.1~120°/S | |
| Preset speed | 400°/S | |
| Preset accuracy | ±0.10° | |
| Preset points | 128 | |
| Interface | ||
| Audio in | 1 channel MIC input (support line in)，3.5mm audio interface | |
| Audio out | 1channel; 3.5mm audio interface | |
| Memory interface | Support SD2.0 standard Micro SDHC card, maximum capacity:32G(need set before leave factory) | |
| NI | LAN | 10/100M network adaptive,RJ45 adapter |
| Alarm I/O | 1 channel input/1 channel output(120VAC 1A/24VDC 1A) | |
| Audio & Video coding | ||
| Video coding | H.264 Main Profile，MJPEG/JPEG Baseline | |
| Resolution | Preferred /Alternate stream | D1:704*576(PAL),1-25fps/sec；704*480(NTSC),1-30fps/sec |
| Half-D1:704*288(PAL),1-25fps/sec；704*240(NTSC),1-30fps/sec | ||
| CIF:352*288(PAL),1-25fps/sec；352*240(NTSC),1-30fps/sec | ||
| QCIF:176*144(PAL),1-25fps/sec；176*120(NTSC),1-30fps/sec | ||
| Video compression rate | 32Kbps～16Mbps selectable,support CBR/VBR | |
| Title OSD | Supports channel name, date, and video stream information; overlay location is adjustable | |
| Audio compression | G.711,G.726,support 32K stereo | |
| Data transmission and storage | ||
| Data storage | Video、picture file | |
| Storage mechanism | Manual、Auto (repeat、timing、aarm switch quantity、motion detection) | |
| Alarm data transmission | FTP、E-mail、browser、management software | |
| Protocol | TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP | |
| ONVIF | Support | |
| Client browser | PC | Support IE6.0 and above(embedded Web Server), maximum can support 10 users concurrent access |
| Smartphone | Support Windows Mobile、Symbian、iPhone platform | |
| General parameters | ||
| IP66 environmental protection | NO | Support |
| Working temperature | 0℃~50℃ | –30℃~60℃ |
| Working humidity | 0%~90% (no-condensing) | |
| Heater | No | Support 6℃ ON 14℃ OFF |
| Power | 24VAC 1.5A 60Hz/50Hz | 24VAC 2A 60Hz/50Hz |
| relevant certification | ＣＥ，ＲoHs,FCC | CE,RoHs,FCC,IP66 |
| Consumption | 20W |
Size:
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 5-7 working days |
| FOB Port | Guangzhou,Hong Kong,Shenzhen |
| Loading Info | sea and air |
| Packing Info | 4pcs for one standard carton |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, Northern Europe, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
