Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Style Dome Camera
Special Features Other, Waterproof, Weatherproof
Type IP Camera
Technology Other, Pan, Tilt, Zoom
Image Sensor CCD

Detail Description

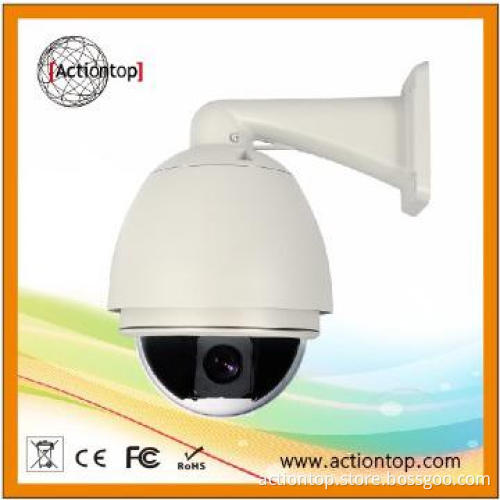

SD IP PTZ Camera or High Speed Dome Camera

Puma11.102S

  • Optimized compression algorithm : H.264 Main Profile,high compression ratio, high definition, support dual stream.
  • Image quality, code rate and frame rate are settable;
  • Support local SD Card storage;
  • Support video loss, motion detection( sensitivity and detection area can be setted) and sensor alarm function.;
  • Support ONVIF protocol,bothway voice talkback;
  • Support a variety of network protocol such as TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP and so on;
  • Support setup and call of preset, cruise and track (cruise and track need be matched);
  • Built-in Web Server, can realize remote monitor, control, set and other operations through IE browser;;
  • Support mobile monitor;
  • Support voice talkback input;
  • Multilevel user permission management;
  • Support remote updating maintenance;
  • Unusual self-recovery and network interruption automatic reconnect function;
  • Pass IP66,CE,FCC,RoHs and other related validation;
Type Indoor Outdoor
Dome Camera
Address 0~255
Pan range 360°° Continue Rotation
Tilt range  0°~90° ;  Auto flip 180°with forward tracing 10°
Manual speed Pan 0.1~300°/S
Manual speed Tilt 0.1~120°/S
Preset speed 400°/S
Preset accuracy ±0.10°
Preset points 128
Interface
Audio in 1 channel MIC input (support line in),3.5mm audio interface
Audio out 1channel; 3.5mm audio interface
Memory interface  Support SD2.0 standard Micro SDHC card, maximum capacity:32G(need set before leave factory)
NI LAN 10/100M network adaptive,RJ45 adapter
Alarm I/O 1 channel input/1 channel output(120VAC 1A/24VDC 1A)
Audio & Video coding
Video coding H.264 Main Profile,MJPEG/JPEG Baseline
Resolution Preferred /Alternate stream  D1:704*576(PAL),1-25fps/sec;704*480(NTSC),1-30fps/sec
Half-D1:704*288(PAL),1-25fps/sec;704*240(NTSC),1-30fps/sec
CIF:352*288(PAL),1-25fps/sec;352*240(NTSC),1-30fps/sec
QCIF:176*144(PAL),1-25fps/sec;176*120(NTSC),1-30fps/sec
Video compression rate 32Kbps~16Mbps selectable,support CBR/VBR
Title OSD Supports channel name, date, and video stream information; overlay location is adjustable
Audio compression G.711,G.726,support 32K stereo
Data transmission and storage
Data storage Video、picture file
Storage mechanism Manual、Auto (repeat、timing、aarm switch quantity、motion detection)
Alarm data transmission FTP、E-mail、browser、management software
Protocol TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
ONVIF Support
Client browser PC Support IE6.0 and above(embedded Web Server), maximum can support 10 users concurrent access
Smartphone Support Windows Mobile、Symbian、iPhone platform
General parameters
IP66 environmental protection NO Support
Working temperature 0℃~50℃ –30℃~60℃
Working humidity 0%~90% (no-condensing)
Heater No Support  6℃ ON 14℃ OFF
Power 24VAC 1.5A 60Hz/50Hz 24VAC 2A 60Hz/50Hz
relevant certification CE,RoHs,FCC CE,RoHs,FCC,IP66
Consumption 20W 35W






Actiontop has been specializing in PTZ (Pan/Tilt/Zoom) high speed dome technology, R&D, production and sales of analog and network monitoring and surveillance product solutions since its establishment in 1999. After over fourteen years rapid development, it has become the leading and professional OEM&ODM manufacturer of high speed dome cameras with the most-advanced independent core technology and R&D capability in the relevant industry. In July 2010, Actiontop officially joined in Cantronic Security Systems (China) Co., Ltd, a listed company in Canada, hoping to realize better resources allocations and create more social contributions for safety world by applying advanced international managerial methods.

Actiontop is located in Shenzhen with two plants of 4000square meters and around 120staff including a R&D team of 20 professional engineers. Now Actiontop has built a very mature product system, including full HD IP high speed dome, laser IP IR high speed dome, synchronous zoom network high speed dome, SD IP high speed dome, Car Carrier PTZ Camera with IR, simulation high-speed dome, IR high speed dome, 3D color hemisphere and a series of cctv security products. The products are widely used in government, public security, finance, airports, schools, etc., and are sold to more than 80 countries and regions such as the United States, Mexico, Brazil, Russia, U.K., Germany, France, Poland, South Africa, Singapore, Taiwan, Hong Kong, the Middle East and so on.

Our Certificates:
ISO9001, RoHS, CE, FCC,IP66, China\'s Ministry of Public Security Authentication ( CMA),etc



`

Additional Information

Payment Terms L/C, T/T
Minimum Order 1
Lead Time / Delivery Time 7 Day(s)
Sample Available YES
Delivery Details Lead-+ ime:1-10pcs 5 workingdays; 11-50pcs 7workingdays; 10-100pcs 10workingdays ; more than 100pcs 15workingdays;
Packing Info 1PCS/1Box; 4Box/1CNT
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
