Intelligent Alarm Speed Dome
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Mode | Intelligent Alarm Speed Dome |
|---|---|
| Preset speed | 400°/S |
| Preset Points | 256 |
| Menu operation | Multi-Language (English Chinese German ,French, |
| relevant certification | CE,RoHs,FCC,IP66 |
| Style | Dome Camera |
| Special Features | Other |
| Technology | Other, Pan, Tilt, Zoom |
| Type | Other |
| Image Sensor | CCD |
Detail Description

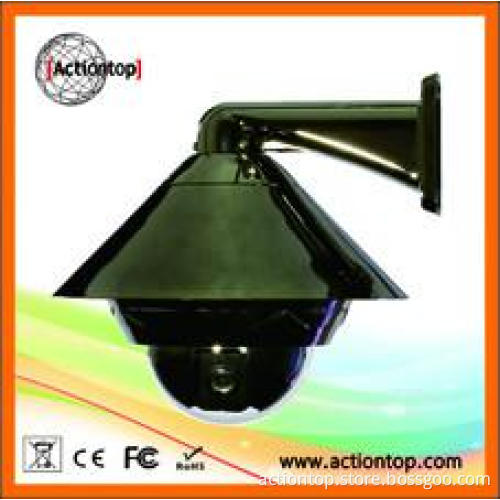

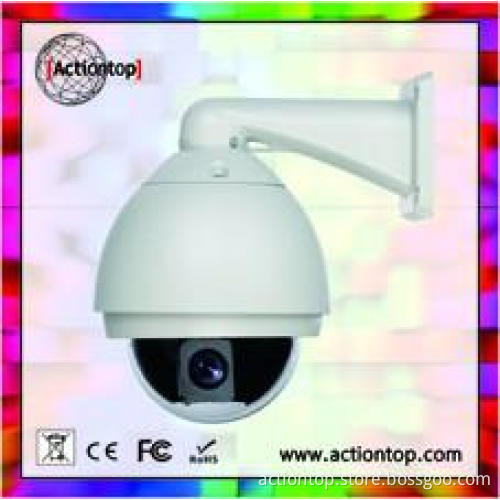

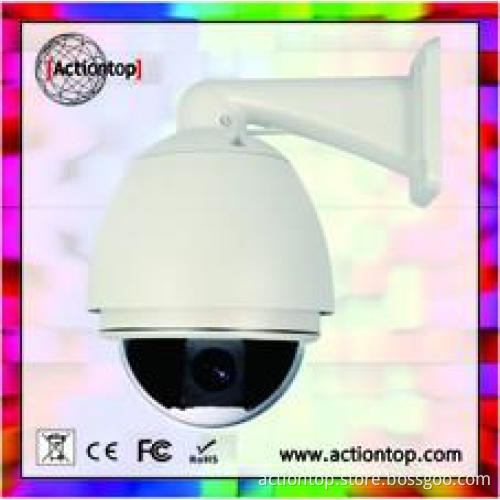

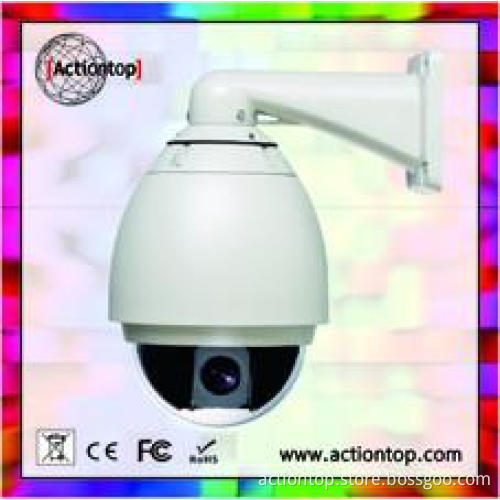

Intelligent Alarm Speed Dome
Puma7
Performance Specification：
Puma7
Performance Specification：
- 8 channels alarm input and 2 channels alarm output, temperature alarm, temperature shutdown setup, alarm warning;
- 360° continuous rotation, tilt: 0° ~90° (180° auto flip) auto forward tracing 10°，pan manual operation speed: 0.1~300°/S，tilt manual operation speed: 0.1~120°/S, preset running speed 400°/S，user defined 256 presets；
- Multi-language( English, Chinese, German, French, Russian, Italy and Spanish ) OSD menu screen display function, easy to set dome and camera specification；
- Password protection function, user account can lock the password;
- Temperature display function, support setup and display of date and time;
- 24 programmable privacy zones, 8 groups programmable real-time operation areas ; 4 pattern scans and 6 programmable vector scan;
- Timing automatic activation function: can set auto functions after a set idle time, such as area scan, intermittent scanning, continuous scan, pattern scan, call preset and son on;
- Automatic identification of 8 kinds of cameras (Sony, Hitachi, Yoko, CNB, Sanyo，LG, Haitron，Samsung);
- Support protocol: Pelco-D/P，Actiontop，Alec;
- Intelligent power off memory and image freeze function;
- Built-in heater and fan (outdoor type)
- All-weather design, reach CE,RoHs,FCC,IP66 Grade（outdoor type);
- RS-485 long-range control
| Dome type | Indoor dome | Outdoor dome |
| Address | 0~255 | |
| Pan range | 360°Continue | |
| Tilt range | 0°~90° Flip; 180° auto flip with 10° forward tracing | |
| Manual speed Pan | 0.1~300°/Sec | |
| Manual speed Tilt | 0.1~120°/Sec | |
| Preset speed | 400°/Sec | |
| Preset accuracy | ±0.10° | |
| Preset points | 256 | |
| Operation menu | Multi-Language (English Chinese German ，French, Russian, Italian, Spanish.) | |
| Function display | Yes | |
| User admin | Master/Operator password setup and operation lock setup | |
| Operator Authorization | Authorization of operator programming | |
| Date/Time setup and display | Date/time display on screen and modify | |
| Assignment Programming | 8 assignments programming, operation mode, function matter setup etc. | |
| Power Timer Programming | Power ON/OFF and Mode setup | |
| Alarm in Programming | 8 inputs, normality setup, Notice Label display, Trigger or recall function, Prior, Operation time setup | |
| Alarm out Programming | 2 outputs,4 triggers, Label display, Operation time setup etc. | |
| Temperature setup and display | Temperature alarm, Notice Label display and temperature display on sreen | |
| Operation crosshair function | Yes | |
| Pan and Tilt position display | Yes | |
| privacy zones (Masking) | 24 Programmable Zones | |
| Sector label display | 8 Programmable Zones | |
| Recall Function | Yes | |
| PTZ Tours (Pattern) | 4 Programmable (Pan/Tilt/Zoom and each tour is 60 seconds) | |
| Operation return function | Yes | |
| Vector scan groups | 6 Programmable(Dwell time speed preset point and embed other vector scan or PTZ tours) | |
| Integrate multi-protocol | Pelco_D/P Actiontop Alec | |
| Auto Scan | with Smart Programmable variable speed | |
| High efficient 3-dimension scan | Yes | |
| Long-focus speed-limited | Yes | |
| Intelligent power off real time memory | Power off memory of function set; automatic wake up tour function | |
| Home position | Yes | |
| Supporting camera | Support Sony, Hitachi, Yoko, CNB, Sanyo, LG and Samsung etc | |
| Camera menu operation | Yes | |
| Manual operation | Endless | |
| IP66 for outdoor use | No | Yes |
| Operating Temperature | 0℃~50℃ | –30℃~60℃ |
| Humidity | 0%~90% (Non condensing) | |
| Heater in operation | No | 6℃ on 14℃ off |
| Power | 24VAC 1.5A 60Hz/50Hz | 24VAC 2A 60Hz/50Hz |
| Consumption | 20W | 35W |
| Communication | RS485 (+/-) | |
| Connection | BNC cable |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 5-7 working days |
| FOB Port | Guangzhou,Hong Kong |
| Loading Info | sea and air |
| Packing Info | 4pcs for one standard carton |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, Northern Europe, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
