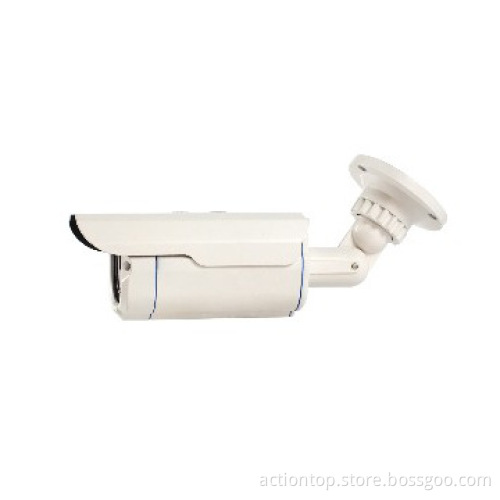

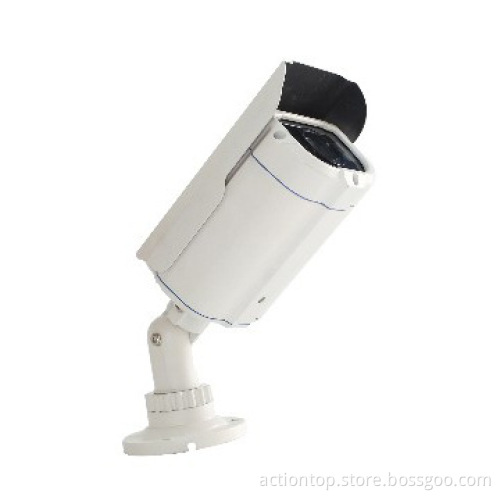

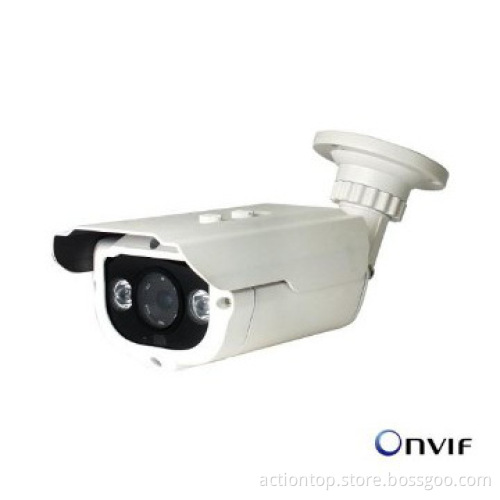

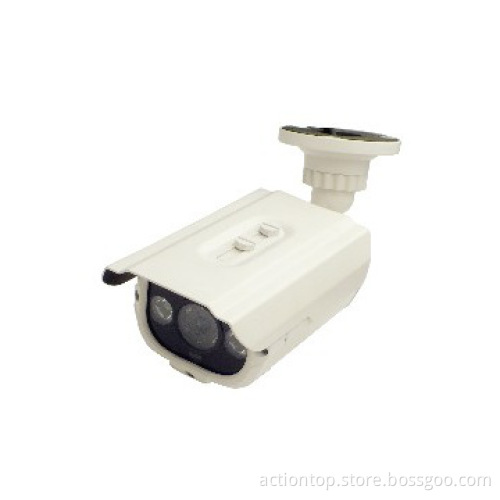

1080P Small Waterproof IR Bullet IP Camera(CMOS)
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Effective Pixels | 1920(H)×1080(V) |
|---|---|
| Min.Illumination | Color Mode:0.1Lux @F1.2,B/W:0.05Lux |
| IR Parameters | 2 IR LEDs, IR distance 30m |
| WDR | 72dB |
| Sensor | 1/2.8 CMOS active pixel type |
| Special Features | Waterproof, Weatherproof |
| Type | IP Camera |
| Image Sensor | CMOS |
| Style | Box Camera |
| Technology | Infrared, Other, Pan, Tilt, Zoom |
Detail Description
1080P Small Waterproof IR Bullet IP Camera(CMOS)
AT9801-HF2D46(-POE)-L Series
- Max resolution: 1920*1080
- 1/2.8 CMOS active pixel type SENSOR
- Excellent low light performanc, Min.Illumination: 0.05Lux@(F1.2)
- Support Color/BW mode converting (dual IR-Cut filter)
- Support lens distortion correction
- 2 IR LEDs, IR distance 30m
- H.264/MJEG is optional, dual streaming, low bandwidth, and high quality.
- Support 4 area privacy mask
- Built-in Web server enables the use of a standard Web browser for viewing and management.
- Support Onvif protocol
Model |
AT9801-HF2D46(-POE)-L208/4/6/8/12/16 |
|
Hardware | ||
SOC Ship |
Hi3516C |
|
Sensor |
1/2.8 CMOS active pixel type |
|
Effective Pixels |
1920(H)×1080(V) |
|
Min.Illumination |
Color Mode:0.1Lux @F1.2,B/W:0.05Lux |
|
S/N |
≥50db(AGC OFF) |
|
Day/night |
Auto,dual IR-Cut filter |
|
IR Parameters |
2 IR LEDs, IR distance 30m |
|
WDR |
72dB |
|
Interfaces | ||
Optical lens |
Interfaces |
CS |
Lens |
Fixed Aperture |
|
Focal Length |
2.8/4/6/8/12/16mm (optional) |
|
Audio Talkback |
1 channel MIC input, 3.5 mm connector |
|
Audio Output |
1 channel output, 3.5 mm connector |
|
Storage Interface |
Micro SDHC card supports video storage and image snapping; SD2.0 standard, maximum storage 32G |
|
Video output |
1 channel ,BNC connector |
|
I/O |
1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output, 120VAC 1A/24VDC 1A, 1 RS485 interface |
|
Network Interface |
10/100M BASE-TX,RJ-45 connector |
|
Audio video encoding | ||
Video Compression |
H.264 Baseline Profile;
MJPEG/JPEG Baseline
|
|
Resolution |
Master Streaming |
1920*1080,1-25(30) fps/sec
1280*960,1-25(30) fps/sec
1280*720,1-25(30) fps/sec
|
Second Streaming |
640*480,1-25(30) fps/sec
320*240,1-25(30) fps/sec
160*112,1-25(30) fps/sec
|
|
Video Bitrate |
32Kbps～16Mbps,Supports CBR/VBR |
|
Title OSD |
Supports channel name, date, and video stream information overlay;OSD location is adjustable |
|
Audio Compression |
G.726, G.711a, G.711u |
|
Data transmission and storage | ||
Data storage |
Video and Image |
|
Recording |
Recording set up to record by manual, or schedule |
|
Network protocol |
TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,
UPNP,Onvif
|
|
Remote View |
IE 6.0 or up, max 16 user |
|
General Parameters | ||
Operating Temperature |
-10℃ - +55℃ |
|
Operating Humidity |
0% - 90% |
|
Power |
DC12V/POE(IEEE802.3af) |
|
Power Consumption |
5W(MAX) |
|
Dimension |
158(L) *108(W)*75(H)mm |
|
Weight |
0.8KG |
Actiontop has been specializing in PTZ (Pan/Tilt/Zoom) high speed dome technology, R&D, production and sales of analog and network monitoring and surveillance product solutions since its establishment in 1999. After over fourteen years rapid development, it has become the leading and professional OEM&ODM manufacturer of high speed dome cameras with the most-advanced independent core technology and R&D capability in the relevant industry. In July 2010, Actiontop officially joined in Cantronic Security Systems (China) Co., Ltd, a listed company in Canada, hoping to realize better resources allocations and create more social contributions for safety world by applying advanced international managerial methods.
Actiontop is located in Shenzhen with two plants of 4000square meters and around 120staff including a R&D team of 20 professional engineers. Now Actiontop has built a very mature product system, including full HD IP high speed dome, laser IP IR high speed dome, synchronous zoom network high speed dome, SD IP high speed dome, Car Carrier PTZ Camera with IR, simulation high-speed dome, IR high speed dome, 3D color hemisphere and a series of cctv security products. The products are widely used in government, public security, finance, airports, schools, etc., and are sold to more than 80 countries and regions such as the United States, Mexico, Brazil, Russia, U.K., Germany, France, Poland, South Africa, Singapore, Taiwan, Hong Kong, the Middle East and so on.
Our Certificates:
ISO9001, RoHS, CE, FCC,IP66, China\'s Ministry of Public Security Authentication ( CMA),etc
