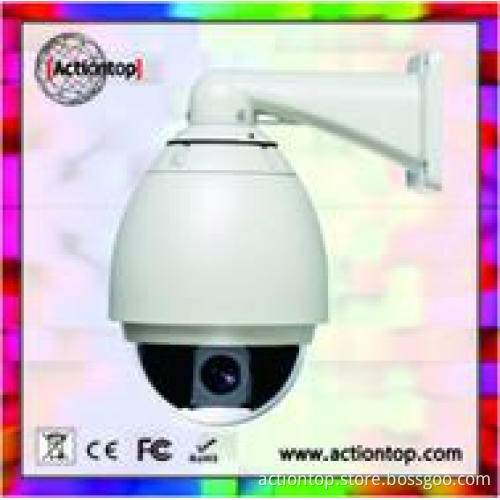

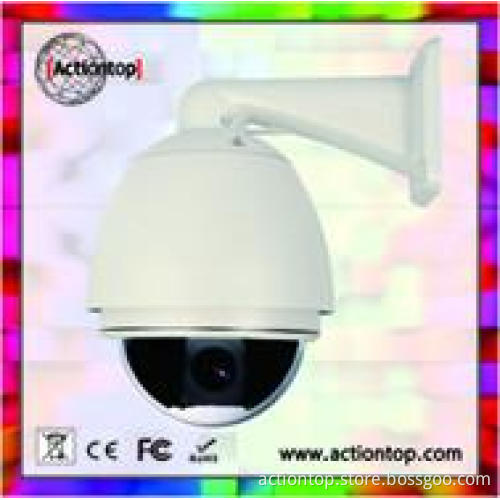

2 .0 Megapixels Full HD Network PTZ High Speed Dome Camera
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| modul | 2 .0 Megapixels Full HD Network PTZ High Speed Do |
|---|---|
| cpu | ARM9,32 bit RISC |
| Sensor | 1/2.8 type solid state Progressive Scan CMOS |
| Pixels | 1920(H) x 1080(V) |
| ONVIF protocol | Support |
| Style | Dome Camera |
| Special Features | Other |
| Type | IP Camera |
| Technology | Pan, Tilt, Zoom |
| Image Sensor | CMOS |
Detail Description
2 .0 Megapixels Full HD Network PTZ High Speed Dome Camera
Mega3.92
- 1/2.8” type solid state Progressive Scan CMOS sensor, 2.0 megapixels;
- Support various video format, the best can support 1920X1080HD network video output, 20X optical zoom;
- Adopt SOC Hi3515 processor, high integration;
- Optimized H.264 Main Profile compression algorithm, high compression ratio, high definition, support dual stream;
- Can set image quality, code rate and frame rate；
- Support local SD card storage；
- Support video loss, motion detection( sensitivity and detection area can be set) and sensor alarm function;
- Flexible OSD and privacy mask function;
- Support two-way audio and monitoring;
- Can set brightness, contrast ratio, saturation and chroma of the video signal;
- Support motion detection, can start through intelligent Windows Mobile 6, Symbian V3/5 version , iPhone and Android system at any time;
- Support multi-IP protocol, such as TCP/IP/UDP/RTP/RTSP/RTCP/HTTP/DNS/DDNS/DHCP/FTP/NTP
- PPPOE/SMTP/UPN;
- Support abnormal situation automatic recovery and network interruption auto reconnection;
- Support setup and call of preset, tour and track;
- Can realize remote monitor, control, setup and other operations through IE browser or other IP software, like NVS center, Milestone, Digifort, NUUO, etc.;
- Support multi-level user management;
- Support phone and mobile network monitoring;
- Support ONVIF protocol;
- With 1 channel input alarm and 1 channel output alarm, support hard reset , image and video storage;
- With Heater and radiators, making the camera to run more stable under temperature of -30℃～60℃;
- With certificate of IP66,CE,FCC,RoHs and other related validation.
| Model | Mega3.102 | |
| Hardware | ||
| CPU | ARM9,32 bit RISC | |
| SoC Chip | HISILICON Hi3515 | |
| RAM | 128MB | |
| ROM | 16MB | |
| Network | LAN | Realtek 10/100M BASE-TX |
| Camera | ||
| Sensor | 1/2.8 type solid state Progressive Scan CMOS | |
| Effective Pixels | 1920(H) x 1080(V) | |
| Total pixels | Effective Pixels(1080p scan mode) | |
| Lens | 20X optical 12X digital zoom | |
| Focal Length | F1.6(wide)~F3.5(tele), f=4.7~94mm, | |
| Iris | F1.6~F9 | |
| Horizontal Angle of View | Approx. 55.2°(wide) , 2.9°(tele) | |
| Min. Illumination | 1.6Lux/0.004Lux | |
| S/N | >50dB | |
| Shutter | 1/1to 1/10000 | |
| Interfaces | ||
| Audio Talkback | 1 channel MIC input(optional) | |
| Audio Output | 1 channel linear output(optional) | |
| Storage Interface | Micro SDHC Card supports video storage and image snapping; SD2.0 standard, maximum storage 16G(optional) | |
| Network Interface | LAN | 10/100M BASE-TX,RJ-45 connector |
| I/O | 1-channel input, Normally Open/Normally Close modes adjustable; 1-channel output, 120VAC 1A/24VDC 1A | |
| Compression | ||
| Video Compression | H.264 Main Profile@Level 3.0MJPEG/JPEG Baseline | |
| Resolution | Master Streaming | 1280*960,1-15fps/sec1280*720,1-25fps/sec |
| Second Streaming | 640*480,1-25fps/sec | |
| Video Bitrates | 32Kbps～16Mbps,Supports CBR/VBR | |
| OSD Title | Supports channel name, date, and video stream information overlay; OSD location is adjustable | |
| The equivalent HDTV standards | 1080P | |
| Audio Compression | G.726/G.711A/G.711U | |
| Image | ||
| Mask Privacy | Max 4 Zones(optional) | |
| Motion Detection | Supports | |
| Alarm Output | E-mail, Explorer, Software | |
| Network protocol | TCP/IP/UDP/RTP/RTSP/RTCP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPN | |
| ONVIF | Supports | |
| Remote View | Computer | IE 6.0 or up, max 10 user |
| Mobile Phone | Windows Mobile, Symbian, iPhone | |
| Dome | ||
| Water and Dust Resistance | IP66 | |
| P/T/Z | 0~255Address, 360° endless Pan range, 0°~90° Flip Tilt range 0.1~300°/Sec Manual Pan speed , 0.1~120°/Sec Manual Tilt speed 400°/Sec Preset speed, ±0.10°Preset accuracy , 128 Points Preset points | |
| Operating temperature | 0℃- 50℃（indoor); -30℃～60℃(outdoor) | |
| Humidity | 0%~90% (no-condensing) | |
| Power | 24VAC 2A 60Hz/50Hz | |
| Consumption | 20W(indoor) 35W(outdoor) |
Standard configuration includes wall mount bracket, power supply, BNC cable, etc in Rohs packaging.
Corner bracket:
Applicable Places:
This 2.0MP Full HD IP PTZ Speed dome cameras are widely used in following places like airports, Metro station, shopping mall, exhibition hall, logistic park, super market, plaza, square, etc.
Welcome for OEM / ODM projects! We will provide you professional OEM/ODM service with over 14 years experience\'s manufacturing for worldwide well branded companies.
Contact us for more details of this hot-selling products now!
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | 500 Piece/Pieces / Month |
| FOB Port | Guangzhou |
| Loading Info | Sea and air |
| Packing Info | 4pcs for one standard carton 5-7 working days |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
