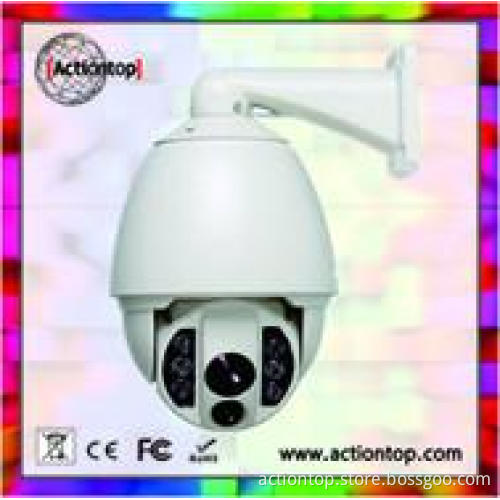

1.3 Megapixels IP Camera HD IR High Speed Dome
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Sensor | 1/3 |
|---|---|
| IR distance | 150m |
| Lens | 18X optical zoom f=4.7mm(W) ~ 84.6mm(T) |
| Power | 24VAC 3A 60Hz/50Hz |
| Comsuption | Max 40W |
| Style | Dome Camera |
| Special Features | Other |
| Type | IP Camera |
| Technology | Pan, Tilt, Zoom |
| Image Sensor | CMOS |
Detail Description
1.3 Megapixels IP HD IR High Speed Dome Camera
Mega4-GH
- Support better night vision, with IR irradiation distance up to 150m by applying new type high power IR-III LED infrared lamp and auto-dimming technology;
- Adopt 1/3\" progressive scan CCD Sensor, 18X optical zoom, 1.3 megapixels;
- Support various video format, max. can support 1280(H)×960(V) HD IP video output;
- Adopt SOC Hi3512 processor, high integration; Adopt 32 bit ARM processor, large storage, faster speed, higher reliability;
- Optimized H.264 Main Profile compression algorithm, high compression ratio, high definition, support dual stream
- Can set image quality, code rate and frame rate;
- Support local SD card storage;
- Support video loss, motion detection( sensitivity and detection area can be set) and sensor alarm function;
- With flexible OSD, LOGO and privacy mask function；
- Support setup and call of preset, tour and track, and two-way audio and monitoring；
- Support motion detection, can start through intelligent Windows Mobile 6, Symbian V3/5 version , iPhone and Android system at any time;
- Support multi-IP protocol, such as TCP/IP/UDP/RTP/RTSP/RTCP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPN;
- Support abnormal situation automatic recovery and network interruption auto reconnection;
- Support setup and call of preset, tour and track;
- Can realize remote monitor, control, setup and other operations through IE browser or other IP software, like NVS center, Milestone, Digifort, NUUO, etc.;
- Support multi-level user management;
- Support ONVIF protocol;
- With 1 channel input alarm and 1 channel output alarm, support hard reset , image and video storage;
- With Heater and radiators, making the camera to run more stable under temperature of -30℃～60℃;
- With certificate of IP66,CE,FCC,RoHs and other related validation.
| Model | Mega4.GH | |
| Hardware | ||
| CPU | ARM9,32 bit RISC | |
| SoC | Hi3512 | |
| RAM | 128MB | |
| ROM | 16MB | |
| LAN | Realtek 10/100M BASE-TX | |
| Camera | ||
| Sensor | 1/3\" progressive scan CCD | |
| Effective pixels | 1280(H)×960(V) | |
| Total pixels | 1.3 Megapixels | |
| Lens | 18X optical zoom f=4.7mm(W) ~ 84.6mm(T) | |
| Iris | F1.6 ~F2.8 | |
| Horizontal angle | 55.2°(W)~3.2°(T) | |
| Min. illumination | Color: 0.5 Lux \\ B/W: 0.02 Lux | |
| SNR | ≥50db(AGC OFF, Weight On) | |
| Electronic shutter | 1/4—1/10000sec | |
| Interface | ||
| Voice talkback output | 1 channel，MIC port（optional） | |
| Audio output | 1channel，linear output（optional） | |
| Analog video output | Support | |
| Input alarm | 1 channel | |
| Output alarm | 1 channel | |
| Hard reset | Support | |
| Memory interface | Support image and video storage，SD2.0， | |
| Compression | ||
| Video compression | H.264 Main Profile@Level 3.0 / MJPEG selectable | |
| Resolution | Master Streaming | 1280*960,1-15fps/sec1280*720,1-25fps/sec |
| Second Streaming | 640*480,1-25fps/sec | |
| Video Bitrates | 32Kbps～16Mbps settable | |
| OSD Title | Support channel name, date and video information overlay; OSD position adjustable | |
| Audio compression | G.726/G.711A/G.711U | |
| Image | ||
| Mask setting | Max 4 Zones selectable | |
| Dual stream | Support | |
| Email alarm | Support | |
| Protocol | TCP/IP/UDP/RTP/RTSP/RTCP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPN | |
| ONVIF protocol | Support | |
| Motion detection | Support intelligent mobile phone with Windows Mobile 6, Symbian V3/5 version , iPhone and Android system | |
| Dome | ||
| Pan range | 360° infinite continuous rotation | |
| Tilt range | 0°~90° auto flip 180° | |
| Manual Pan speed | 0.1~250°/S | |
| Manual Tilt speed | 0.1~200°/S | |
| Preset speed | 120°/S | |
| Preset accuracy | ±0.20° | |
| Preset Points | 128 | |
Intelligent power off real time memory |
Power off memory of function set; automatic wakeup tour function | |
| Operating temperature | -30℃～60℃ | |
| Humidity | 0%~90% (no-condensing) | |
| Power | 24VAC 3A 60Hz/50Hz | |
| Consumption | 40W (outdoor) | |
| IR parameters | ||
| Number of ∮20 lamps | 6 | |
| Number of ∮30（high power） | 1 | |
| Lamp working manner | 1-5X short range lighting;6-11X medium range lighting;12X and more distance lighting | |
| IR distance | 150m | |
| Flashlight | No | |
| Related validation | IP66,CE,FCC,RoHs |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | 500 Piece/Pieces / Month |
| FOB Port | Guangzhou |
| Loading Info | Sea and air |
| Packing Info | 4pcs for one standard carton 5-7 working days |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
