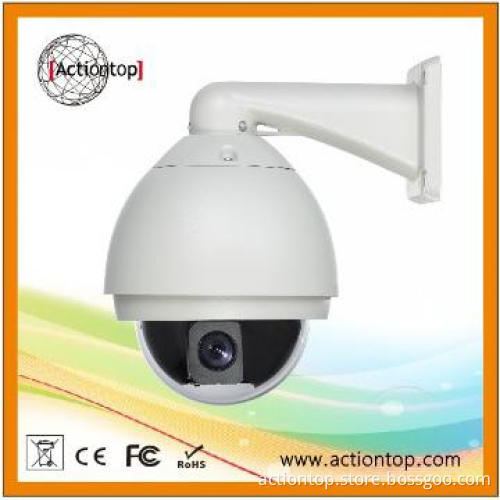

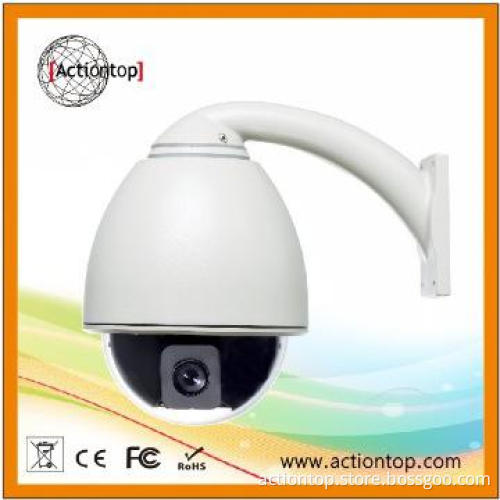

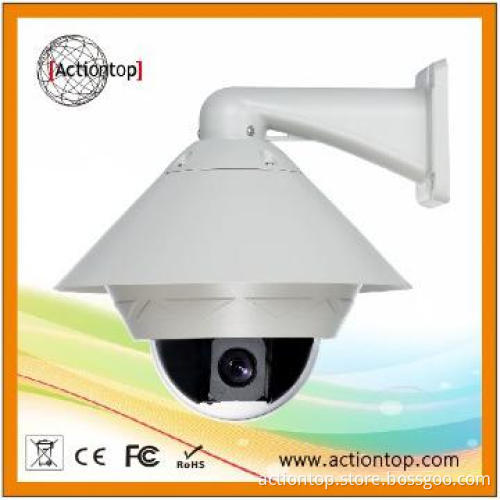

high speed dome Chinese manufacturer ptz camera

high speed dome Chinese manufacturer ptz camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Preset speed	120°/S
Preset points	128 Points
Compatible cameras	Automatically identify(Sony Hitachi Yoko CNB Sanyo
Communication	RS485
Power	AC24V
Style	Dome Camera
Technology	Other, Pan, Tilt, Zoom
Type	Other
Special Features	Weatherproof
Image Sensor	CCD

Detail Description

Luna7.D2

Performace Specification:

360° continuous rotation, tilt: 0° ~90° (180° auto flip),pan manual opeation speed: 0.1~100°/S,tilt manual operation speed:0.1~60°/S,preset running speed 120°/S,user defined 128 presets;
6 programmable vector scan , intelligent speed infinite pan scan;
Automatic identification of 8 kinds of cameras (Sony, Hitachi, Yoko, CNB, Sanyo,LG, Hai-tua,Samsung);
Support protocol:Pelco-D/P, Actiontop, Alec;
Intelligent power off memory and image freeze function,
All-weather design, IP66 Grade(outdoor type);
RS-485 long-range control;

Technical Specifications:

Dome type	Indoor dome	Outdoor
Address	0~255
Pan range	360°infinite continuous rotation
Tilt range	0°~90° Flip; 180° auto flip with 10° forward tracing
Manual speed Pan	0.1~100°/Sec
Manual speed Tilt	0.1~60°/Sec
Preset speed	120°/Sec
Preset accuracy	±0.10°
Preset points	128 Points
Tours	6 Programable(Dwell time speed preset point)
Integrate multi-protocol	Pelco_D/P
Auto Scan	Yes ( Programable speed )
Intelligent power-off memory current setting and state	Yes
Home position	Yes
Supporting camera	Automatically identify(Sony Hitachi Yoko CNB Sanyo LG Hitron KT&C Samsung etc.)
Zoom	Optical
Continue Manual	Endless
Ingress Protection IP66	No	YES
Operating Temperature	0°C~50°C	–30°C~60°C
Humidity	0%~90% (Non condensing)
Heater operate	No	6°C on 14°C off
Power	24VAC 2A 60Hz/50Hz
Consumption	20W	40W
communication	RS485 (+/-)
Connection	BNC cable
Housing	Special plastic	Metal

About us:

Camera module options:

SamSung Model

SCM-2230

23X,color

1/4 inch, Interline Transfer CCD 23X, f=3.84 to 88.4mm(F 1.6 to 3.2) Color:540 TVLine(Min.)

SCM-2231

23X,D/N

1/4 inch, Interline Transfer CCD 23X, f=3.84 to 88.4mm(F 1.6 to 3.2) Color:540 TVLine(Min.) B/W:570 TVLine(Min.)

SCM-2271

27X,D/N

1/4 inch, Super HAD color CCD 27X, f=3.5 to 94.5mm(F 1.6 to 2.9) 560 TV Lines(Min.) : Color / 680 TV Lines(Min.) : B/W

SCM-2301

30X,D/N

1/4 inch, Interline Transfer CCD 30X, f=3.3 to 99.0mm(F 1.6 to 3.2) Color:560 TVLine (Min.) B/W:570 TVLine (Min.

SCM-2331

33X,D/N

1/4 inch, Super HAD color CCD 33X, f=3.5 to 115.5mm(F 1.6 to 3.6) Color:560 TV Line B/W:680 TV Line

SCM-3331

33X ,D/N,WDR

1/4 inch, Double Density Interline Transfer CCD 33X, f=3.5 to 115.5mm(F 1.6 to 3.6) Color:560 TV Line B/W:680 TV Line

SCM-2371

37X ,D/N,

1/4 inch, Double density interline treneter CCD37X, f=3.5 to 129.5mm(F 1.6 to 3.9) 560 TV Lines(Min.) : Color / 680 TV Lines(Min.) : B/W

SCM-3371

37X ,D/N,WDR

1/4 inch, Double density interline treneter CCD37X, f=3.5 to 129.5mm(F 1.6 to 3.9) 560 TV Lines(Min.) : Color / 680 TV Lines(Min.) : B/W

Sony Model

FCB Ex-45CP

18x , color

1/4 type IT SuperHAD Super HAD CCD 18X f = 4.1 (WIDE) to 73.8 (TELE) mm 460 TV lines

FCB Ex-480CP

18x, D/N

1/4 type IT EX-VIEW HAD CCD 18X D/N f = 4.1 (WIDE) to 73.8 (TELE) mm 460 TV lines

FCB Ex-980CP

26x , D/N

1/4 type IT EX-VIEW HAD 26X Zoom D/N f=2.5 mm (wide) to 91.0 mm (tele) (F1.6 to F3.8) 460 TV lines

FCB Ex-990DP

26x , D/N,WDR

1/4 type PS CCD EX-VIEW HAD PS CCD D/N, WDR ,f=2.5 mm (wide) to 91.0 mm (tele)(F1.6 to F3.8) 530 TV lines

FCB Ex-1010P

36X,D/N,WDR

1/4 type PS EX-VIEW HAD PS CCD 36X ,D/N ,WDR f = 3.4 (WIDE) to 122.4 (TELE) mm (F1.6 to F4.5)

FCB Ex-985EP

28X,D/N

1/4-type Super HAD CCD II,(Interlace Scan)28x optical zoom lens,f=3.5 mm (wide) to 98.0 mm (tele),F1.35 to F3.7 550 TV lines

FCB Ex-995EP

28X,D/N,WDR ,ST

1/4-type EXview HAD CCD,(Progressive Scan)28x optical zoom lens f=3.5 mm (wide) to 98.0 mm (tele),F1.35 to F3.7 550 TV lines StableZoom

FCB Ex-1020P

36X,D/N,WDR,ST

1/4-type EXview HAD CCD,(Progressive Scan) 36x optical zoom lens f=3.4 mm (wide) to 122.4 mm (tele),F1.6 to F4.5 550 TV lines StableZoom

Hitachi Model

VK-S214ER

22x zoom,Color

1/4” CCD,Color 480TVL,22X Optical zoom,12x digital,

VK-S635EN

30x zoom,D/N,WDR

1/4” ExViewHAD CCD,30X D/N,WDR

VK-S655EN

36x zoom, D/N, WDR

1/4” ExViewHAD CCD,36X D/N,WDR

VK-S858EN

23x zoom,D/N, WDR

1/4” ExViewHAD CCD,23X D/N, WDR

LG Model

LM-928DA-P/N,

28X zoom,D/N ICR

1/4\" 960H Dual scan CCD 28X zoom ( F1.5(Wide End) , F3.7(Tele End) ( f = 3.5mm ~ 129.5 mm ) , Horizontal Resolution:600 TV Lines, Min. illumination : Color:0.2 Lux B/W:0.01 Lux,D/N( ICR-Cut)

China Model

AT-18P65,

18X zoom

Sensor:1/3\" Sony Effio-e CCD,Camera:AT-18P65 18X optical zoom without digital zoom,IR Cut: with IR Cut ,Lens:F1.6(W)~3.0(T)f=5.0~90mm,Min. Illumination:Day mode:1 Lux,Night Mode:0.1Lux(Infra LED off), 0Lux(Infra LED on),Horizontal Resolution:650TVL

AT-26P54,

25x zoom

Sensor:1/4\" Super HAD CCD,Camera:AT-26P54 26X optical zoom 10X digital zoom,IR Cut: with IR Cut,Lens:F1.6(W)~3.8(T) f=3.2~83mm ,Min. Illumination:Day Mode:1Lux;Night Mode:0.5 Lux(infra LED off),0 Lux(infra LED on),Horizontal Resolution:540TVL

Applicable Places:

Size Chart:

Additional Information

Payment Terms	T/T
Minimum Order	1
Lead Time / Delivery Time	5 Day(s)
Sample Available	YES
Delivery Details	5-7 working days
FOB Port	Guangzhou,Hong Kong
Loading Info	sea and air
Packing Info	4pcs for one standard carton
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Central & Southern Asia, Southeast Asia, Western & Southern Europe
