960P Indoor IP IR Dome Camera(CMOS)
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Sensor | 1/3\" Progressive Scan Low Ligth CMOS |
|---|---|
| Effective Pixels | 1280(H)×960(V) |
| Min.Illumination | Color Mode:0.1Lux ;B/W Mode: 0.05Lux |
| IR Parameters | 36 IR LEDs, IR distance 30m |
| WDR | ≥80db |
| Style | Dome Camera |
| Special Features | Waterproof, Weatherproof |
| Type | IP Camera |
| Image Sensor | CMOS |
| Technology | Infrared, Other, Pan, Tilt, Zoom |
Detail Description

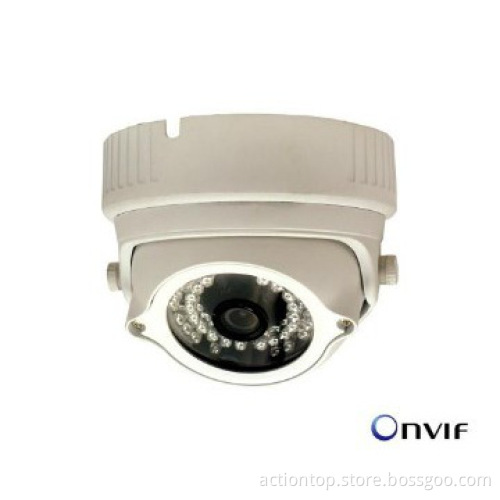

960P Indoor IP IR Dome Camera(CMOS)
AT9802-FB1E12-IR-L Series
- Max resolution:1280×960, output Real-time HD 960P/720P image
- Excellent low light performance
- 1/3\" Progressive Scan Low Ligth CMOS, Capture impressive video
- IR model support auto Color/BW mode converting(dual IR-Cut filter)
- 36 IR LEDs, IR distance 30m
- Support lens distortion correction
- Support rotation (90°, 270°)
- Two-axis adjustable, no dead angle surveillance
- H.264/MJPEG is optional, dual streaming, low bandwidth, and high quality.
- Support 4 area privacy mask
- Built-in Web Server,Support IE video browsing, Parameter configuration, upgrade, user rights management
- Power supply :DC12V
- Support Onvif protocol
| Model | AT9802-FB1E12-IR- L | |
| Hardware | ||
| SOC | Hi3518C | |
| Sensor | 1/3\" Progressive Scan Low Ligth CMOS | |
| Effective Pixels | 1280(H)×960(V) | |
| Min.Illumination | Color Mode:0.1Lux ;B/W Mode: 0.05Lux | |
| S/N | ≥50db(AGC OFF) | |
| Day/night | Auto,dual IR-Cut filter | |
| IR Parameters | 36 IR LEDs, IR distance 30m | |
| WDR | ≥80db | |
| Interfaces | ||
| Optical lens | Interface | M12 |
| Lens | Fix iris | |
| Focal | 2.8/3.6/6/8mm (optional) | |
| Network Interface | 10/100M BASE-TX,RJ-45 connector | |
| Audio video encoding | ||
| Video Compression |
H.264 Baseline Profile MJPEG |
|
| Resolution | Master Streaming |
1280*960,1-25(30) fps/sec 1280*720,1-25(30) fps/sec 960*720,1-25(30) fps/sec 720*576,1-25(30) fps/sec |
| Second Streaming |
704*576,1-25(30) fps/sec 640*480,1-25(30) fps/sec |
|
| Video Bitrate | 32Kbps～16Mbps,Supports CBR/VBR | |
| Title OSD |
Supports channel name, date, and video stream information overlay; OSD location is adjustable |
|
| Data transmission and storage | ||
| Data storage | Video and Image | |
| Recording | Recording set up to record by manual, or schedule | |
| Alarm Output | FTP.E-mail, Explorer, Software | |
| Network protocol |
TCP/IP.UDP.RTP.RTSP.RTCP.HTTP.DNS.DDNS.DHCP.FTP.NTP.PPPOE.SMTP.UPNP ONVIF |
|
| Remote View | IE 6.0 or up, max 16 users | |
| General Parameters | ||
| Temperature | -10℃ - +55℃ | |
| Operating Humidity | 0% - 90% | |
| Power | DC12V | |
| Power Consumption | 5W(MAX) | |
| Dimension | 82(H) * Φ120mm | |
| Weight | 0.65KG |
Actiontop has been specializing in PTZ (Pan/Tilt/Zoom) high speed dome technology, R&D, production and sales of analog and network monitoring and surveillance product solutions since its establishment in 1999. After over fourteen years rapid development, it has become the leading and professional OEM&ODM manufacturer of high speed dome cameras with the most-advanced independent core technology and R&D capability in the relevant industry. In July 2010, Actiontop officially joined in Cantronic Security Systems (China) Co., Ltd, a listed company in Canada, hoping to realize better resources allocations and create more social contributions for safety world by applying advanced international managerial methods.
Actiontop is located in Shenzhen with two plants of 4000square meters and around 120staff including a R&D team of 20 professional engineers. Now Actiontop has built a very mature product system, including full HD IP high speed dome, laser IP IR high speed dome, synchronous zoom network high speed dome, SD IP high speed dome, Car Carrier PTZ Camera with IR, simulation high-speed dome, IR high speed dome, 3D color hemisphere and a series of cctv security products. The products are widely used in government, public security, finance, airports, schools, etc., and are sold to more than 80 countries and regions such as the United States, Mexico, Brazil, Russia, U.K., Germany, France, Poland, South Africa, Singapore, Taiwan, Hong Kong, the Middle East and so on.
Our Certificates:
ISO9001, RoHS, CE, FCC,IP66, China\'s Ministry of Public Security Authentication ( CMA),etc
