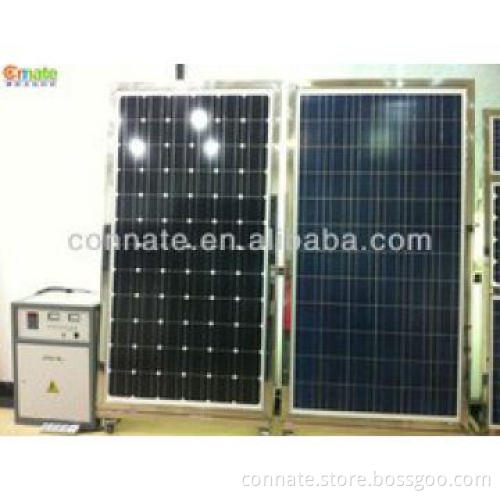

Off-grid solar power system
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Input Volatage | DC12V |
|---|---|
| Rated Power | 1000W |
| Max Power | 1050W |
| Load Power | 720W |
| Output Voltage | 220V±10% |
| Type | Off-Grid |
| Solar Power | 1000W-2000W |
| Application | Home |
Detail Description
| Modle No:CN-OP-1000W | CN-OP-1000W |
| Input Volatage | DC12V |
| Rated Power | 1000W |
| Maximum power | 1050W |
| Output Voltage | 220V±10% |
| Output Frequency | 50-60Hz±0.5 |
| Output Wave | Pure Sine Wave |
| Waveform Distortion | ≤5% |
| Invert Efficiency | ≥83% |
| Low Voltage Protection | 10V±0.5 |
| Overvoltage Protection | 16V±0.5 |
| Overload Protection | Over110% |
| Short Circuit Protection | Yes |
| Over Temperature | 90°C±10 |
The Controller Part Of The Property
Input Voltage:DC30V-DC50V
Rated Voltage:DC36V
Input Power:720W
Fioat Voltage:27.6V
Charge Current:30A
Efficiency:>96%
Feature
- highly improve the reliability and extensibility
- It has excellent shock resistance
- automatic identification and selection of solar control functions.
- It has an AVR voltage stabilizing function which can meet the different requirements of users.
Characteristics
Type |
We could offer on-grid system, off-grid system and portable solar system etc |
Output |
We could provide any watt as customer quested |
Use |
Widely used for electricity, industry, communication, navigation, irrigation, PV house and remote power requirements |
Design |
When we design solar system , need to know well the informations as following : 1.About load , is it DC or AC ? 2.What kinds of equipments do you want to use for solar system ? How many total voltage of load power ? 3.Do you want on-grid system or off-grid system please ? 4.How many hours of per day do you want to use for solar system please ? 5.How many constantly cloudy days do you need solar system work for ? 6.Where do you want to install solar system ? |
Our company can desined according to customer\'s requirements.
Warmly welcome your inquiry!Thank you!
Additional Information
| Payment Terms | L/C, T/T, D/A, D/P, Western Union |
|---|---|
| Minimum Order | 5set/sets |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | small order delivery within 21 days,more than 21 days if big order. |
| FOB Port | Shenzhen |
| Loading Info | shipped by express,by sea or by air. |
| Packing Info | carton and pallet according to the specification of product. |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
