85W Cheap Solar Module With High Efficiency
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Size | 530*364*25mm |
|---|---|
| Weight | 1.5kg |
| Warranty | 5years,90% power 10 years,80% power 25 years |
| Frame | Aluminum |
| Module efficiency | 10.6% |
| Output Power | 85W |
| Material | Polycrystaline Silicon |
| Certification | CE, IEC, ISO, Other, RoHS, TUV |
Detail Description

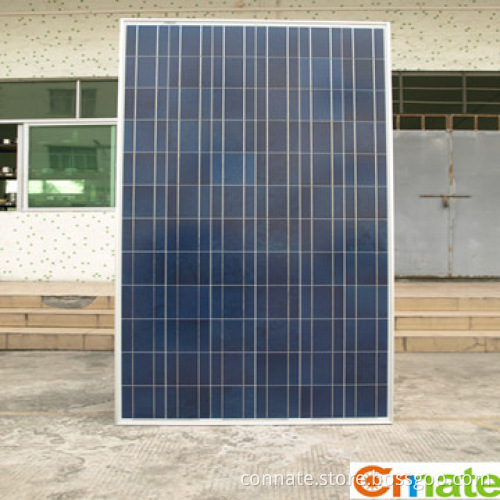

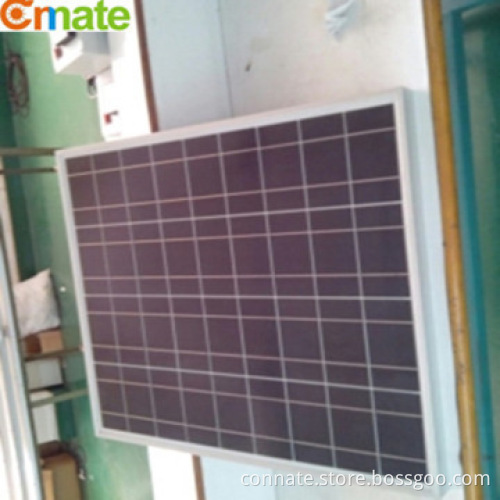

Polycrystalline silicon solar module CN-DC01P75W-90W
Electrical characteristics
Mechanical characteristics
Packing means
Absolute maximum ratings
Product guarantee: 5 years guarantee. output power 90％ in 10 years, 80％ in 25 years
.Warmly welcome your enquiry ! Thank you !
Electrical characteristics
| Model | P75W | P80W | P85W | P90W | |
| Maximum power | Pm(W) | 75 | 80 | 85 | 90 |
| Power tolerance | (％) | ±3 | ±3 | ±3 | ±3 |
| Optimum operation voltage | Vm(V) | 17.5 | 18 | 18 | 18 |
| Optimum operation current | Im(A) | 4.3 | 4.445 | 4.722 | 5 |
| Open circuit voltage | Voc(V) | 21.6 | 21.6 | 22 | 22 |
| Short circuit current | Isc(A) | 4.65 | 4.8 | 5 | 5.2 |
| Maximum system voltage | (VDC) | 900 | 900 | 900 | 900 |
| Cell efficiency | Eff(％) | 14 | 15 | 16 | 17 |
| Module efficiency | ηm(％) | 11.63 | 12.4 | 13.18 | 13.95 |
| Cell type, qty, arrangement | 36pcs polycrystalline cell (4*9） | ||||
| Cell size | (mm) | 125*125mm | |||
| Bypass diode | (Pcs) | 2 | |||
| Maximum fuse in series | (A) | 6 | |||
| Temp. coefficient power | (％/℃) | -0.45 | |||
| Temp. coefficient Voc | (％/℃) | 0.05 | |||
| Temp. coefficient Isc | (％/℃) | -0.35 | |||
| Nominal operating cell temp. | (℃) | 47±2 | |||
| Standard test conditon | 1000W/m2，25℃,AM1.5 |
| Dimension | （mm） | 1187*552*35 |
| Junction box | Ⅴ/Ⅵ，TUV approval | |
| Weight | （kg） | 7.5 |
| Glass | Hight transmission of light, low iron, tempered glass |
| Qty/CTN | PCS/CTN | 5 |
| Carton dimension | （mm） | 1205*565*210 |
| Qty/20GP | 800PCS/16PCS | |
| Pallet dimension | （mm） | 1220*580*130 |
Absolute maximum ratings
| Dielectric isolation voltage | (VDC) | 2000MAX |
| Operating temperature | (℃) | -40—+85 |
| Storage temperature | (℃) | -40—+85 |
| Maximum wind resistance | (m/s) | 60 |
| Maximum hail diameter @ 80Km/h | (mm) | 25 |
| Maximum load capacity | (Kg/㎡) | 200 |
.Warmly welcome your enquiry ! Thank you !
Additional Information
| Payment Terms | L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal |
|---|---|
| Minimum Order | 10 pcs |
| Lead Time / Delivery Time | 21 Day(s) |
| Sample Available | YES |
| Delivery Details | Small quantity less than 21 days,big quantity more than 21days |
| FOB Port | Shenzhen |
| Loading Info | can shipped by express,by sea,by air transport |
| Packing Info | Qty/CN:2 pcsCtn size:199*102*13CMQty/20GP:180 pcs by 5pcs palletPllet size:210*102*13.5CM |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
