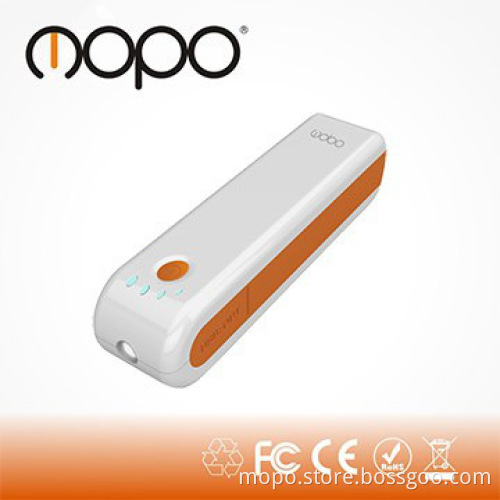

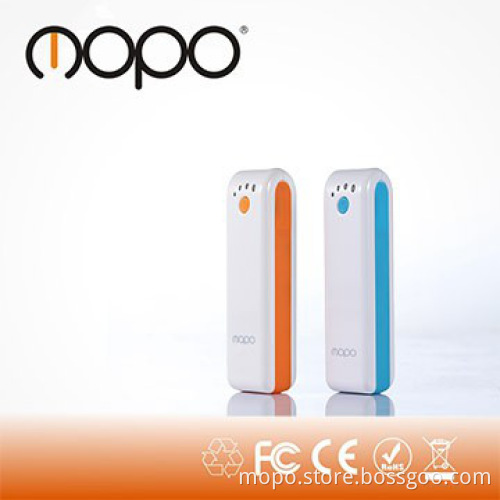

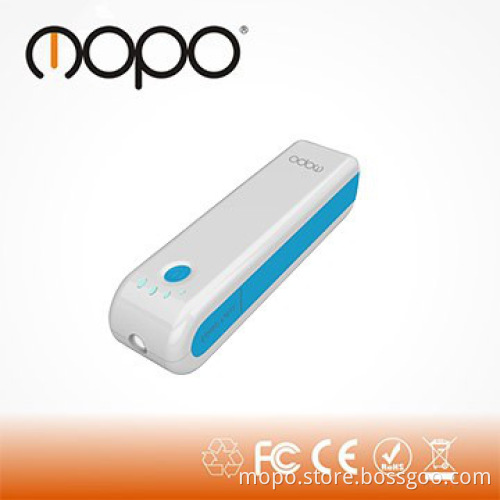

battery power bank with LED light of 2600A

battery power bank with LED light of 2600A

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input	Micro USB 5V/1000mA
Size	1002424mm
Output	USB 5V/1A Max
Weight	78g
Capacity	USB 5V/1A Max
Capacity	2500-10000mAh
Type	Li-Ion

Detail Description

The battery power bank of Using Description and Test Standard

No.	Test Items	Test Standard	Remark
1	Charging Voltage	DC 5V	DC Source limited current :0.7A
2	Charging Current	0.55A±0.1A	The charging current depends on the battery voltage.
3	Fully charged indicator	All LED light LED
4	Charging indicator:
ON/OFF status	Display way
OFF status	(①●○○○→②●●○○→③●●●○→●●●●→①)
ON status	①Increased by progressively for 10s →②Display the current electric quantity for 10s →①
5	Display the electric quantity；
LED	electric quantity
●○○○	1%-25%
●●○○	26%-50%
●●●○	51%-75%
●●●●	76%-100%
6	ON/OFF	A Press the button for 1s and LED will display the current cell electric quantity.It shows that the unit has turn on and has the output voltage .Then press the button again, the 5V output can be closed..(Remark:When the unit has turn on,LED indicator will enter into belt light before display the electric quantity.And LED will enter into belt light at opposite direction before turns off.) 。 B Press the button for 3s ,the LED turns light.Then press the button again for ,it will urns off.
7	Output voltage	Turn on without load	5V±5%	D+2.00±0.15V D-2.70±0.15V
Turn on with 1.0A load	5V±5%	The line loss can not 0.2V.
8	Over-current value	＜1.7A	If output exceed over current value(within 5s),the output will be cut off.And it can be activated by charging.
9	Leakage current	Less than 100uA
10	Short circuit protection	Short the positive and negative terminal of output,then disconnect.The unit shall has no output.And it can be activated by charging.
11	Appearance inspection	The appearance shall be free from scratches,aberration,large gap and dirt.Else,it shall be accordance with the requirements of BOM.And the feeling of button is the same with the sample.
Remark:“●”means light,“○”means off.When the cell voltage less than 3.0V,the discharge low-voltage protection will be start up and it can not turn on until the cell voltage reaches to 3.0V.And it can not charge to SUMSUNG P1000.

The battery power bank of Product Parameters

1-1.	Model No.	:	MF-2600A
1-2.	Cell Type	:	Lithium-ion
1-3.	Cell Model	:	18650 2600mAh *1
1-4.	Output Parameters	:	USB Output 5.0V 1A(MAX)
1-5.	Charging Parameters	:	MICRO Input 5V 550±100mA
1-6.	Typical Capacity	:	2600mAh at 0.2C
1-7.	Temperature Range	:	Charge:0～45℃ Discharge :-20～55℃ Storage: -20～25℃ Within 1 year -20～45℃ Within 3 months -20～60℃ Within 1 month
1-8	Warranty	:	months limited warranty from date of purchase.
1-9	Weight		74±5g
1-10	Humidity range		Operating humidity range: Less than 75% RH Storage humidity range: Less than 75% RH

The Specification of the battery power bank MF-2600A

Spec.

battery type:Li-ion

capacity: USB 5V/1A Max

input: Micro USB 5V/1000mA

output: USB 5V/1A Max

dimensin: 100*24*24mm

weight: 78g

The Feature of the battery power bank MF-2600A.

Feature

1.Small size

2.LED light

3.smart LED display

4. Multiple safety protection system to ensure devices safety.

Caution:

1.Please read these instructions carefully as incorrect use of Li-polymer batteries may lead to dangers such as overheating,fuming,catching fire.

2. Please charger the mobile charger completely before the first time using it.

3. Before charging the electric device, please confirm the voltage of the electric device. Make sure the voltage of your device ranges between 4.5V to 5.5V.

4. Don’t drop, knock, disassemble or attempt to repair the charger by yourself.

5. Don’t immerse the charger in water or make it wet.

6. Don’t expose the charger to a heat source as fire or heater.

7. Keep out of reach of children.

8. Don’t use in the presence of flammable gas.

The battery power bank MF-2600A fit for which device?

Fit for :

iPhone

iPad

iPod

Mobile power

MP3/MP4

PSP

NDS

The Q&A of the battery power bank MF-2600A ?

Question and Answer:

1.What\'s the MOQ?

Answer: The MOQ is 1000pcs.

2.Could I order the quantity under the MOQ?

Answer: Yes, It\'s ok. But please confirm the stock with our sales at first.

3.What\'s kind of the package?

Answer: Gift box/ Blister box/ Paper box

4.Your price is FOB Shehzhen,Could you help me to arrange the shipment?

Answer: Yes, It\'s ok. We could recommend some nice freight forward to you.

5.what\'s your delivery date.

Answer: 20~28DAYS after we receive the deposit and all details are confirmed.

Additional Information

Payment Terms	L/C, T/T, Western Union, Money Order, Paypal, Others
Minimum Order	500
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	We will devilery samples after receive the paymet.The payment should incloud the freight.
FOB Port	Shenzhen,
Loading Info	We always use fedex or ups
Packing Info	1.20pcs into one master carton
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
