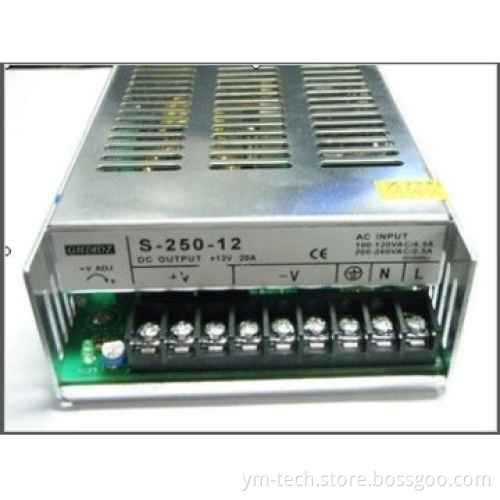

Indoor 250W LED Switching Driver Power Supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Model Specification	YMSLV-250-5	YMSLV-250-12	YMSLV-250-24
DC output voltage	5V	12V	24V
Output voltage range(Note:2)	±1%	±1%	±1%
Rated output current	50A	20.833A	10.42A
Output current range	0-50A	0-20.83A	0-10.42A
Wave and noise(Note:3)	150mvp-p	150mvp-p	150mvp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±0.5%	±0.5%	±0.5%
DC output power	250w	250w	250w
Efficiency	74%	80%	83%
Adjustable range for DC voltage	4.5~5.5v	10~13.2v	21.5~27v
AC input voltage range	176-264VAC 47~63Hz;248~370VDC
Input current	2.5A/230V
AC Inrush current	50A /230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~150% Type:pulsing hiccup shutdown Reset:auto recovery
Over-voltage protection	115%~135% Type:pulsing hiccup shutdown Reset:auto recovery
High-temperature protection	>=800C~850C,Cut off output(5~15V)~(24~48V)
Temperature coefficient	±0.03%/0C(0~500C)
Setup,rise,hold up time	200ms,100ms,20ms
Working temperature and humidity	-100C~+600C(Refer to output derating curve),20%~90%RH
Store temperature and humidity	-200C~+850C,10%~95%RH
Overall dimension	21511550mm
Weight/packing	0.8kgs, 20pcs/18KG
Safety standards
EMC standards	Desgn refer to FCC Part15J classA

Payment Terms	L/C, T/T, Others
Minimum Order	100PCS
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Loading Info	FOB SHENZHEN,EXW SHENZHEN
Packing Info	FOB SHENZHEN,EXW SHENZHEN
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
