Ultra thin QI Wireless Charging receiver for Galaxy NOTE2

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Output voltage	4.75-5.0V
Output current	0.1~0.7A (0.8A max.)
Size(L-W)	68.3*60.3mm
Size	0.8-1.4mm
Type	Other
Market	For Australia/New Zealand, For Brazil, For E.U., For Italy, For UK, For USA/Canada, Other
Use	Other
Charge Current	Other

Detail Description

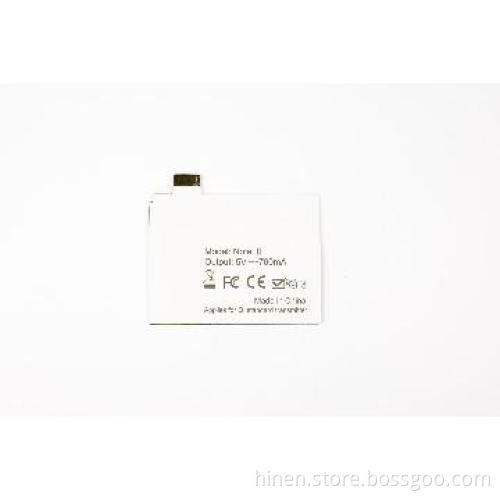

Ultra thin QI Wireless Charging receiver for Galaxy NOTE2

This high performance Ultra thin QI Wireless Charging receiver is specially customized for Samsung galaxy NOTEII, which can perfectly slip under the back cover of your Samsung Galaxy NOTEII to enable it achieve wireless charging function.

Features

l QI wireless charging Standard, specially designed for NOTEII.
l Easy to set.
l Ultra thin design, compact and light weight, the back cover of mobile phone has no obvious swelling after installation.
l Low working temperature.
l Over current protection.
l Large output current, shortening the charging time for your phone.

SPECIFICATION

Output voltage	4.75-5.0V
Output current	0.1~0.7A (0.8A max.)
Size(L-W)	68.3*60.3mm
Thickness	0.8-1.4mm
Operating Temperature Range	0~45°C
Storage Temperature Range	20 ~ 85°C
High Humidity Operation	+40 C and 90 ~ 95%
Color	White
Weight	3.8g
Overload protection	Yes
Short circuit protection	Yes
Efficiency:	>60%
Life span	50000 Hours
Limited Warranty	1 Year
User Manual	English Version

Note: Specifications are subject to change without notice.

OPERATION STEPS
1Open the back cover of your NOTEII.
2 Let the two protuberant touch points of the receiver touch the two recesses next to the battery.

3 Close the original back cover.
4 Place the mobile phone onto the wireless charging pad(not included, but you can find in our company if needed.).

Additional Information

Payment Terms	T/T
Minimum Order	100
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	Negotiable
FOB Port	Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
