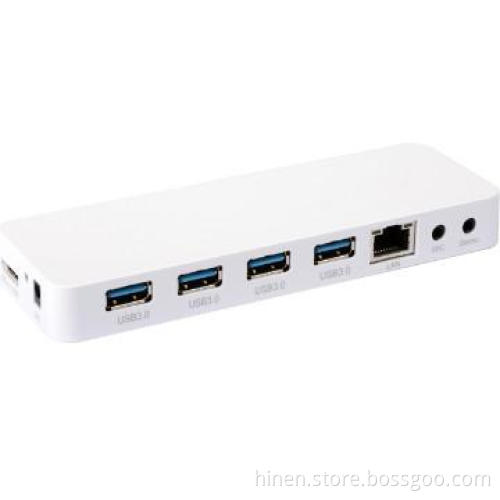

High speed 5Gbps USB3.0 Docking Station with RJ45 interface


Introduction

This USB 3.0 Docking Station uses universal USB technology to pass through critical signals such as video, LAN and peripheral connectivity. As USB 3.0 speed can be up to 5Gbps, it’s ten times of USB 2.0 and greatly improves the stability of transmission and the efficiency of separate keyboard/ mouse/ microphone/ cables, etc. It provides a quick and easy connection to the workspace peripherals which are used every day.

1.1 Features

l  Four USB 3.0 ports, one RJ45 interface (1000M), one Earphone interface, and one Microphone interface.
l  Compliant with USB 3.0 transfer up to 5Gbps.
l  Supports USB super-speed/high-speed/full-speed operation.
l  Complies with USB 3.0 specification, USB mass storage class, bulk-only transport specification.
l  Supports USB 3.0 power saving mode.
l  Supports USB 3.0 to 10/100/1000M Gigabit Ethernet controller with IEEE 802.3az (Energy Efficient Ethernet).
l  Design for Windows XP, Windows 7, Windows 8, Windows Vista, Mac OS 10.6.8 X.
l  The first port can be used to charge for the IOS devices (Note: Only when the PC is in the Suspend Mode can be used to charge.)

2.0 Specifications

Signal Inputs/Output
Input port	Micro USB 3.0 BFx1
Output port	USB 3.0 AF x4, RJ45 interface ×1 Earphone interface ×1 Microphone interface ×1
Data transfer	Up to 5Gbps
Stat LED	Power LED
Current cost(Min)	118mA
Power cost(Min)	0.59W
Power supply	5V/4A
Operating Temperature	0℃ to +70℃
Operating Humidity	10% to 90 % RH (no condensation)
Size	17×149×50mm
Weight	0.08Kg
Warranty
Limited Warranty	1 Year
User Manual	English Version
