Basic Info

Product Description

Product Details

Basic Specification

color	White
catelogy	Adapter
Certification	CE,FCC,ROHS,UL

Detail Description

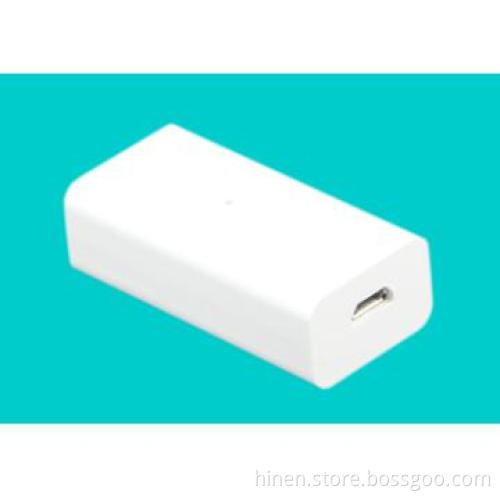

WiFi Express Adapter

1.0 Introduction

This portable WiFi Express Adapter features petite and fashionable look, it integrated wireless Ap, PPPoE access point etc functions all-in-one, and it can build a stable network at any place. It is widely applied in home, office, business, hotel, pub, bedroom and other places.

1.1Features

l Comply with IEEE802.11g, IEEE802.11b standards.

l Compatible with IEEE802.3u agreement.

l Supports IEEE802.3x FCP Flow control.

l Compatible with IEEE802.11 series of protocol.

l Supports IEEE802.11WEP encryption function.

l Adopted MIMO technology and its wireless transmitting speed reached 54Mbps.

l Provides simple configuration and monitor program.

l Using wireless roaming technology and guarantees high effective wireless connection.

l Can modify wireless network SSID, signal channel, password, user name.

2.0 SPECIFICATIONS

Standard And Agreement

IEEE 802.11g IEEE 802.11b

PPPOE CSMA/CA

USB Type

Supports USB1.1,USB2.0

Antenna Type

The built-in antenna

Work Frequency Range

2.4～2.4835GHz

Transfer Speed

11g:54/48/36/24/18/12/6M(Self-automatic adjusting)

11b:11/5.5/2/1M(Self-automatic adjusting)

Work Channel

Channel 3 、6 、9 、11

Spread Spectrum

DSSS(Direct Sequence Spread Spectrum)

Data Modulation

QPSK/BPSK/CCK/OFDM/QAM

Sensitivity

54M:-69dBm@8% PER

11M:-85dBm@8% PER

RF Power

17dBm (11B ，Typical)

Transmitting Distance

Indoor:≤100meters(Varies with the environment)

Outdoor:≤330meters(Varies with the environment)

LED indication

Power

LAN/WAN

Reset Key

Eliminate previous given code

Power Adapter

DC 5V/500mA

Power consumption

0.775W

Size

25mm×16mm×50mm

Weight

14.5g

Package Accessories

Operation instructions

Work Circumstance

Work temperature:0℃～40℃

Storage degree:-25℃～75℃

Work humidity 10%～95%

Non-condensing

3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

Main unit x1
User\'s Manual x1
CD driver x1

Additional Information

Payment Terms	T/T
Minimum Order	100
Lead Time / Delivery Time	20 Day(s)
Sample Available	YES
Delivery Details	EX-WORK, FOB SZ
FOB Port	Hong Kong,Shenzhen
Loading Info	Seafreight, airfreight. Express shipment
Packing Info	KMK Carton with standard size: 50x32x21cm
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Middle East, North America, Northern Europe, Central & Southern Asia, Western & Southern Europe
