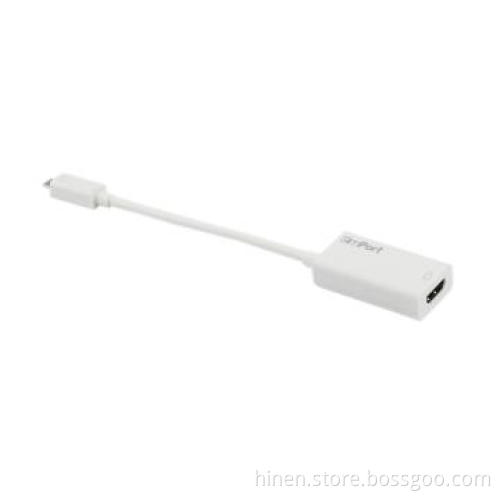

SlimPort to HDMI Adapter

SlimPort to HDMI Adapter



1.1  Features

This product has many features that enable it to perform in a superior manner. Among those features you will find:
Slimport Input Interface
●The SlimPort™ input supports any 5pin connector.
●Supports Display Port 1.2 input with 1.1a backward compatibility.
●Main link supports one Lane high-speed differential input with configurable speed: 5.4Gbps, 2.7Gbps or 1.62Gbps.
●Main link compliant with Display Port 1.2 main link PHY spec.
●Advanced Wide Eye™ SerDes Technology enables high jitter performance.
●Single wire (C-Wire) side band communication channel in SlimPort™ mode.
●Supports HDCP 1.3.
●Supports Stereo (3D) video input.

HDMI Output Interface

●Compliant with HDMI 1.4a Standard
●CoolHD™ (ZERO Power) HDMI Transmitter
●Supports TMDS Link rates up to 250MHz
●3D video format support
●HDCP 1.3 content protection from end-to-end
●Supports up to 8 channel PCM, Dolby Digital and DTS audio transmission, with 32KHz to 192KHz


2.0 SPECIFICATIONS

Signal Inputs/Output
Input Connector	Micro USB Male x1
Output Connector	HDMI Female x1
Other port	Micro USB Female x1 for charging
Mechanical
Size(L-W-H)	45X43X14.5MM
Weight (Net)	18g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	No
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	No
Accessories Adapter
User Manual	English version
