3 Port HDMI Amplifer Switcher Ultra-High Performance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	black
warranty	1 year
Resolution Rratio	1080p
Application	HDTV

Detail Description

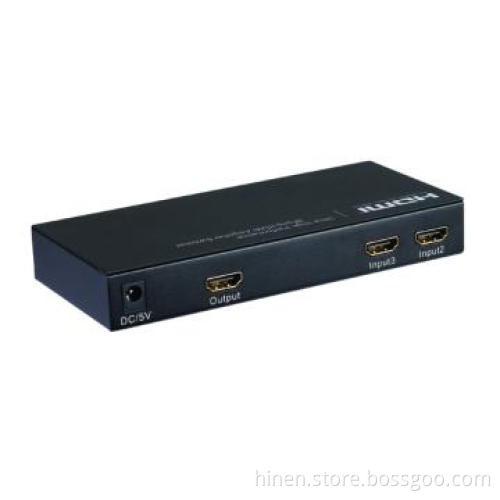

Ultra-High Performance 3 Ports HDMI Amplifier Switcher
P/N：U301

Introduction
This is an intelligent HDMI 3X1 Amplifier Switcher. It allows three HDMI source devices switched into one HD monitor or projector. Adopted touch button design let you enjoy the high technology and easy switching life. Quite differ with other switchers, this intelligent Switcher has one input port on the front panel. This not only reduced the switcher to an ideal small sizebut also be more convenient for users to connect the source devices.

Features
This HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
1、Multi-witching methods: intelligent, IR remote or by touch button
2、Supports HDMI1.3b
3、Supports highest video resolution 1080p.
4、Supports 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.
5、Supports 12bit per channel (36bit all channel) deep color.
6、HDCP pass-through.
7、Supports uncompressed audio such as LPCM.
8、Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）.

SPECIFICATIONS

Signal Inputs/Output
Input DDC Signal	5 volts p-p (TTL)
MaximumSingle Link Range	1920X1080p
Output Video	HDMI 1.3b
Operating Frequency
VerticalFrequency Range	50/60Hz
Video Amplifier Bandwidth	2.5Gbps/250MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Mechanical
Size(L-W-H)	155×70×19mm
Weight(Net)	260g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@2A
Power consumption (Max)	5W
Accessories Adapter
IR remote
User Manual	English Version

Note: Specifications are subject to change without notice.

Additional Information

Payment Terms	T/T, Others
Minimum Order	100Pcs
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	Ex-work, FOB China/HK
FOB Port	Shenzhen
Loading Info	Air/ Sea dispatch available
Packing Info	Neutral Retail gift box or Customize package available
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
