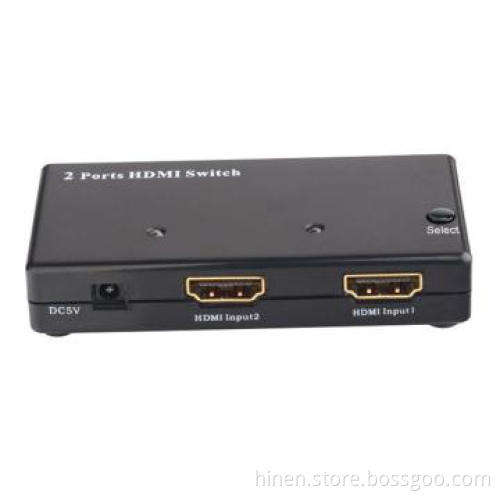

The HDMI Amplifier Switcher


DEAR CUSTOMER

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.


1.0Introduction

This is a kind of high performance HDMI Amplifier Switcher. This kind HDMI Amplifier Switcher not only has the key-press-switching function, but also has intelligent function.
This kind of HDMI Amplifier Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the several sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox360 etc. The output sends the high definition audio/video signals to a high definition display.


1.1 Intelligent function

1) Once the source device is turned on or plugged in (should stay power-on mode), the switcher will automatically select this source.
2) Once the source device is turned off or plugged out, the switcher will automatically select the next power-on source depending on the sequence automatically
Note:
1) When the source devices are on the stand-by mode, its power supply should be turned off, otherwise this switcher can not meet intelligent function.
2) When plugged in or out, this switcher is completely intelligent.


1.2 Features

This HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:

• Multifunctional on switching : intelligent or mechanical
• Support highest video resolution 1080p.
• Support 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.
• Support 12bit per channel (36bit all channel) deep color.
• HDCP pass-through.
• Support uncompressed audio such as LPCM.
• Support compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby  True HD）.
• Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 250MHz.
