Basic Info

Product Description

Product Details

Basic Specification

Input DDC Signal	5 volts p-p (TTL)
Maximum Single Link Range	1920X1080p
Output Video	HDMI
Size(L-W-H)	155×70×25mm
Weight(Net)	265g
Resolution Rratio	1080p
Application	HDTV

Detail Description

1.0 Introduction

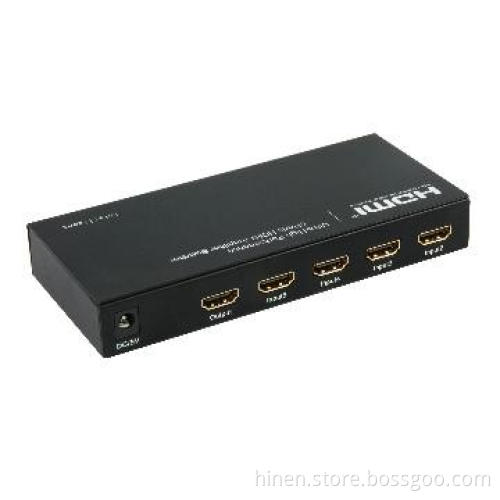

This kind of HDMI Amplifier Switcher not only has the IR remote mechanical function, but also has the intelligent function. It can be used by controlling the IR remote or by hands. Fortunately, it also has been upgraded to be intelligent. This kind of HDMI Amplifier Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the several sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, such as satellite systems and HD DVD players. The output sends the high definition audio/video signals to a high definition display. It has one input port on the front panel, which reduced the switcher to an ideal small and provides convenience for users to connect portable devices.

1.1 Intelligent function

1) When supplied with power, this switcher will select the power-on source device depending on the sequence automatically (input1>input2>input3>input4>input5)
2) Once the source device is turned on or plugged in (should stay power-on mode), the switcher will automatically select this source.
3)Once the source device is turned off or plugged out, the switcher will automatically select the next power-on source depending on the sequence automatically(input1>input2>input3>input4>input5)
Note:
1) When the source devices are on the stand-by mode, its power supply should be turned off, otherwise this switcher can not meet intelligent function.
2) When plugged in or out, this switcher is completely intelligent.

1.2 Features

This HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
l Multifunctional on switching : intelligent or mechanical
l IR remote(included)
l Supports highest video resolution 1080p.
l Supports 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.
l Supports 12bit per channel (36bit all channel) deep color.
l HDCP pass-through.
l Supports uncompressed audio such as LPCM.
l Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）.
l Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 250MHz.

Additional Information

Payment Terms	T/T
Minimum Order	100
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	negotiable
FOB Port	Hong Kong
Loading Info	negotiable
Packing Info	negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
