5Port HDMI Amplifer Switcher

Ultra-High Performance 5 Ports HDMI Amplifier Switcher
P/N：U501

Introduction

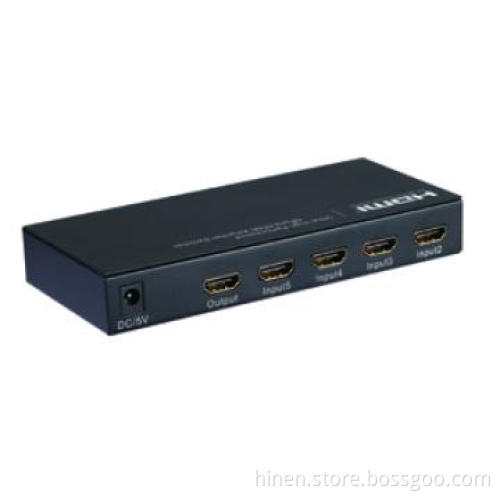

This is an intelligent HDMI 5X1 Amplifier Switcher. It allows five HDMI source devices switched into one HD monitor or projector. Adopted touch button design let you enjoy the high technology and easy switching life. Quite differ with other switchers, this intelligent Switcher has one input port on the front panel. This not only reduced the switcher to an ideal small size but also be more convenient for users to connect the source devices.

Features
This HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
1、Multi-witching methods: intelligent, IR remote or by touch button
2、Supports HDMI1.3b
3、Supports highest video resolution 1080p.
4、Supports 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.
5、Supports 12bit per channel (36bit all channel) deep color.
6、HDCP pass-through.
7、Supports uncompressed audio such as LPCM.
8、Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby  True HD）.

SPECIFICATIONS

Signal Inputs/Output
Input DDC Signal	5 volts p-p (TTL)
MaximumSingle Link Range	1920X1080p
Output Video	HDMI 1.3b
Operating Frequency
VerticalFrequency Range	50/60Hz
Video Amplifier Bandwidth	2.5Gbps/250MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Mechanical
Size(L-W-H)	155×70×19mm
Weight(Net)	260g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@2A
Power consumption (Max)	5W
Accessories Adapter
IR remote
User Manual	English Version


Note: Specifications are subject to change without notice.
