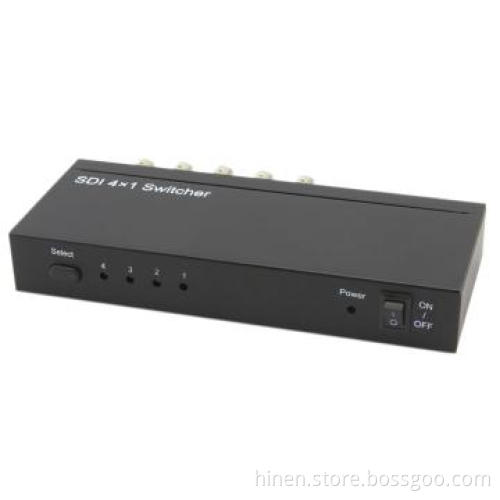

SDI 4x1 Switcher SD-SDI, HD-SDI or 3G-SDI signals are switchable
P/N:SSW0401

1.0 Introduction
This is a 4X1switcher, any four of the SD-SDI, HD-SDI or 3G-SDI signals are switchable before transfer to the output.
The input signals can be switched by the button. While with RS232 interface, you can also switch the signals via computer system.
This product also with Reclock, supports multistage cascade. Besides, the memory function makes it possible to return the last state after restarting or reconnecting.

1.1Features
This product is specially designed with equalizer IC in its inputs and drive IC in its output. All of the inputs and output support long coaxial cable.
Support multiple video resolution：
• SD 480i @525i and 625i
• HD 720p @ 24/25/30/50/60
• HD 1080i @50/60
• HD 1080p @24/25/30
• 3G 1080p @ 50/60
Support multiple color space：
• RGB or YCbCr 4:4:4 sampled
• YCbCr 4:2:2 or 4:2:0 sampled
Support wide range of data rates：270Mbps～2.97Gbps.
Support multiple deep color：8bit、10bit、12bit.
Compatible with HDcctv 1.0, HD-SDI (ST 292), 3G-SDI (ST 424) and SD-SDI (ST 259)

2.0 SPECIFICATIONS

Signal Inputs/Output
Input Connector	4xSDI BNC Male
Output Connector	1xSDI BNC Male
Support line length(Cable is RG59 )
3G(1080P 60HZ) Mode	Up to 80M
HD(720P 60HZ)Mode	Up to 130M
SD(480i)Mode	Up to 220M
Mechanical
Size(L-W-H)	162×85×25MM
Weight (Net)	380G
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 2A
Power consumption (Max)	3W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
User Manual	English version

Note: Specifications are subject to change without notice.

3.0 PACKAGE CONTENTS
Before using this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1XMain unit
1XPower adapter 5V@2A
1XUser\'s Manual
