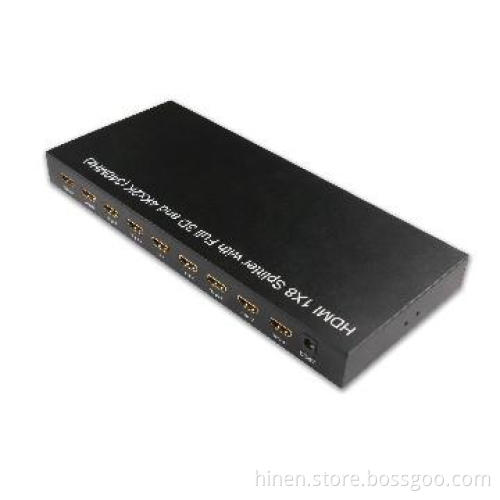

HDMI 1X8 Splitter with Full 3D and 4Kx2K (340MHz)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

This HDMI Splitter has many features that enable it to perform in a superior manner. Among those features you will find:

Easy to Use: Install in seconds, no need of setting.
One HDMI input，eight HDMI outputs.
Supports Full 3D and 4Kx2K resolution.
Supports highest video resolution 1080p.
Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
Supports 12bit per channel (36bit all channel) deep color.
Supports HDCP 1.3
Supports uncompressed audio such as LPCM
Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）.

Signal Inputs/Output
Input DDC Signal	5 volts p-p (TTL)
MaximumSingle Link Range	4Kx2K
Output Video	HDMI(with full 3D and 4Kx2K)
Operating Frequency
VerticalFrequency Range	50/60Hz
Video Amplifier Bandwidth	3.4Gbps/340MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p,4Kx2K
Mechanical
Size(L-W-H)	257×120×25mm
Weight(Net)	730g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 4A
Power consumption (Max)	16W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	USstandard, UK standard and so on
User Manual

Payment Terms	T/T, Others
Minimum Order	100
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	Negotiable
FOB Port	Hong Kong,Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
