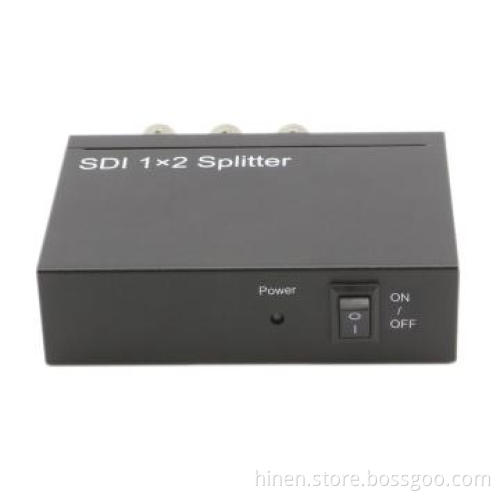

SDI 1X2 Splitter

SDI 1X2 Splitter
P/N:2039

1.0 Introduction
 This is a 1X2 splitter, which make it possible to transfer 1 SDI signal to 2 SDI monitors. Thus you can enjoy more than one SDI program without setting another SDI signal.


1.1Features
 This product is specially designed with equalizer IC in its input and drive IC in its outputs. All of the input and outputs support long coaxial cable.
Support multiple video resolution：
• SD 480i, 576i and 625i
• HD 720p @24/25/30/50/60
• HD 1080i @50/60
• HD 1080p @24/25/30,
• 3G 1080p @50/60
Support multiple color space：
• RGB or YCbCr 4:4:4 sampled
• YCbCr 4:2:2 or 4:2:0 sampled
Support wide range of data rates：270Mbps～2.97Gbps.
Support multiple deep color：8bit、10bit、12bit.

2.0 SPECIFICATIONS


Signal Inputs/Output
Input Connector	1x SDI BNC Male
Output Connector	2x SDI BNC Male
SDI Cable Distance(RG59 cable)
3G Mode	Up to 80m
HD Mode	Up to 120m
SD Mode	Up to 200m
Mechanical
Size(L-W-H)	90×79×25 mm
Weight (Net)	200 g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 2A
Power consumption (Max)	1W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
User Manual	English version


Note: Specifications are subject to change without notice.

3.0 PACKAGE CONTENTS
 Before using this product, please check the packaging and make sure the following items are contained in the shipping carton:

• 1XMain unit
• 1XPower adapter 5V@2A
• 1XUser\'s Manual
