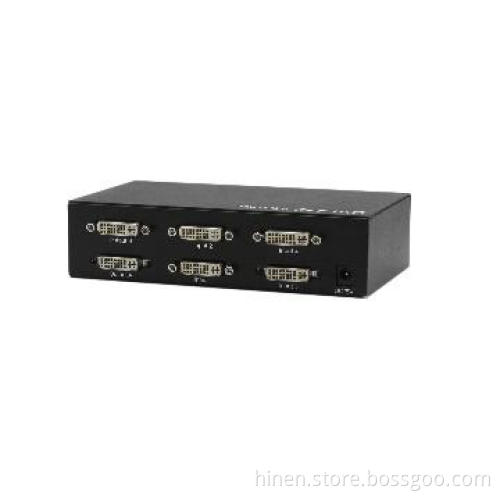

multichannel DVI 4×2 Matrix switcher

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input Video Signal	5 Volts p-p (TTL)
Maximum Single Link Range	1920x1080P
Output Video	DVI
DVI Input/Output Connector	Type A 19 pin
Vertical Frequency Range	50/60Hz
Resolution Rratio	1080p
Application	HDTV

Detail Description

Introduction

The DVI 4×2 Matrix routes high definition video in multiple resolutions up to 1080p plus multichannel digital audio from any of the four DVI sources to two displays. Two outputs give you the choices of sending high definition audio and video signals up to two displays. Any four to any two matrix switching allows for maximum versatility for integrated systems. It eliminates the needing of disconnects and reconnects sources to a display equipped with one input. It works with HD-DVD players, Blue Ray DVD, PS3, and satellite set top boxes that connect to two DVI displays. Every source is accessible at all times by any display by selecting it with an IR remote.

Features

This DVI Switch Splitter has many features that enable it to perform in a superior manner. Among those features you will find:
l Switches easily between any four DVI sources
l Distributes any of the four inputs to any or any combination of the two DVI output displays
l Supports highest video resolution 1080p.
l Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
l Supports 12bit per channel (36bit all channel) deep color.
l Supports HDCP
l Supports uncompressed audio such as LPCM.
l Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）.

Additional Information

Payment Terms	T/T
Minimum Order	100
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	Negotiable
FOB Port	Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
