HDMI SWITCH SPLITTER 3X2 MATRIX

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

HDMI Input/Output Connector	Type A 19 pin
Input Video Signal	5 Volts p-p (TTL)
Maximum Single Link Range	1920x1080P
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	2.25Gbps/225MHz
Resolution Ratio	1080p
Application	HDTV

Detail Description

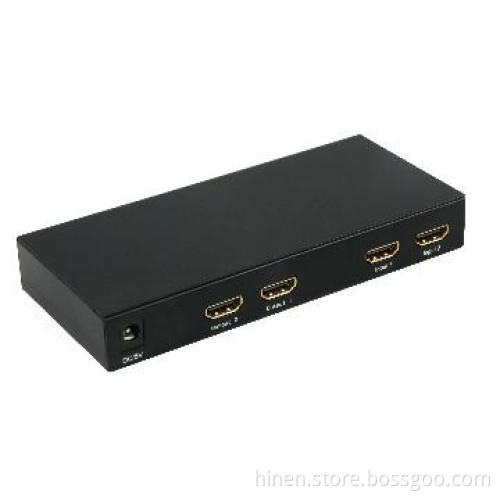

HDMI SWITCH SPLITTER 3X2

1.0 Introduction
This HDMI switch splitter allows three HDTV HDMI devices to be switched easily into two HDTV HDMI compatible monitors or projectors. Simply connecting the HDTV displays to the outputs of this switch splitter, you may enjoy what you want.
It has one input port on the front panel. This not only reduced the switcher to an ideal small but also be more convenient for users to connect the source devices.

It works with HD-DVD players, TiVo systems, HT PCs, and satellite set top boxes that connect to an HDMI display. Every source is accessible at all times by any display by selecting it with an IR remote.

1.1 Features

This kind of HDMI Switcher-Splitter has many features that enable them to perform in a superior manner. Among those features you will find:
l Switch easily between any three HDMI sources to two displays.
l Supports highest video resolution 1080p.
l Supports 225MHz/2.25Gbps per channel (7.5Gbps all channel) bandwidth.
l Supports 12bit per channel (36bit all channel) deep color.
l Supports HDCP
l Supports uncompressed audio such as LPCM.
l Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）.
l Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 225MHz.

Additional Information

Payment Terms	T/T
Minimum Order	1
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	Negotiable
FOB Port	Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Western & Southern Europe
