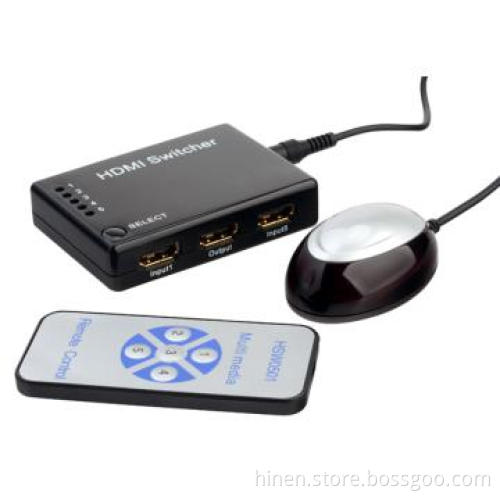

Mini HDMI 5 Port Switcher

MINI HDMI Amplifier Switcher
P/N:HSW0501S


INTRODUCTION:
This is a kind of high performance MINI HDMI Amplifier Switcher. This kind of HDMI Amplifier Switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function. That is to say, as soon as the power supply of the source equipment is switched, this switcher will respond automatically. In addition, it is equipped with standard IR extender receiver: safe and convenient.

This kind of HDMI Amplifier Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the several sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox360 etc. The output sends the high definition audio/video signals to a high definition display.

FEATURES:

• Support 12-bit Deep Color, full 1080p
• Multifunctional on switching: intelligent or mechanical
• Supports with HDMI1.3b
• High performance up to 2.5Gbps
• Supports 25Meters HDMI Cable on both ends of the Switcher
• Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved
•
•
• SPECIFICATIONS

• Signal Inputs/Output
  Input DDC Signal	5 volts p-p (TTL)
  Maximum Single Link Range	1920X1080p
  Output Video	HDMI
  Operating Frequency
  Vertical Frequency Range	50/60Hz
  Video Amplifier Bandwidth	2.5Gbps/250MHz
  Resolutions(HDTV)
  Interlaced(50&60Hz)	480i,576i,1080i
  Progressive(50&60Hz)	480p,576p,720p,1080p
  Mechanical
  Size(L-W-H)	80×58×18mm
  Weight(Net)	55g
  Warranty
  Limited Warranty	1 Year Parts and Labor
  Environmental
  Operating Temperature	0 ℃ to +70℃
  Operating Humidity	10% to 85 % RH (no condensation)
  Storage Temperature	-10℃ to +80℃
  Storage Humidity	5% to 90 % RH (no condensation)
  Power Requirement
  External Power Supply	5V@2A
  Power consumption (Max)	5W
  Accessories Adapter
  IR extender receiver
  IR remote
  User Manual	English Version

• Note: Specifications are subject to change without notice.

• Package Contents
  Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:


• Main unit.
• Remote control
• IR extender receiver
• User\'s Manual
