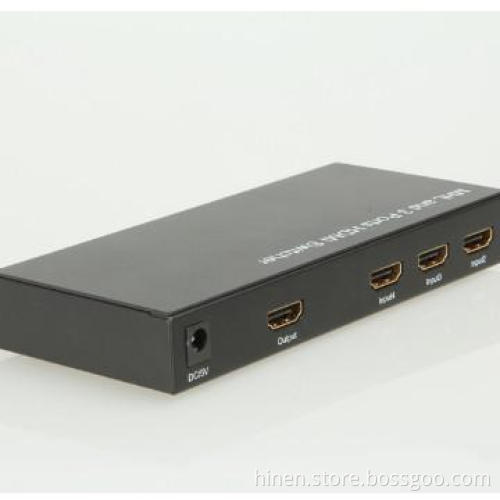

MHL and 3 Ports HDMI Switcher Combo switch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input1	Micro USB Female(MHL) x1
Input2	HDMI Femalex3
Output	HDMI Female x1
Resolution Rratio	1080p
Application	HDTV

Detail Description

MHL and 3 Ports HDMI Switcher Combo switch

l Switches easily between the three HDMI and one MHL sources
l Supports highest video resolution 1080p.
l Supports 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.
l Supports 12bit per channel (36bit all channel) deep color.
l HDCP pass-through.
l Supports uncompressed audio such as LPCM.
l Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）.
l Built-in MHL Receiver converts a single differential pair to HDMI four differential pairs
l MHL input supports all bandwidth between 25-75MHz.
l Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 225MHz for three HDMI inputs.

SPECIFICATIONS

Inputs/Output Connector
Input Connectors	Micro USB Female（MHL） x1 and HDMI Femalex3
Output connector	HDMI Female x1
Output Video	HDMI
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	2.5Gbps/250MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Mechanical
Size(L-W-H)	155×70×25mm
Weight(Net)	260g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@2A
Power consumption (Max)	5W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual

Additional Information

Payment Terms	T/T
Minimum Order	10
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	Negotiable
FOB Port	Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
